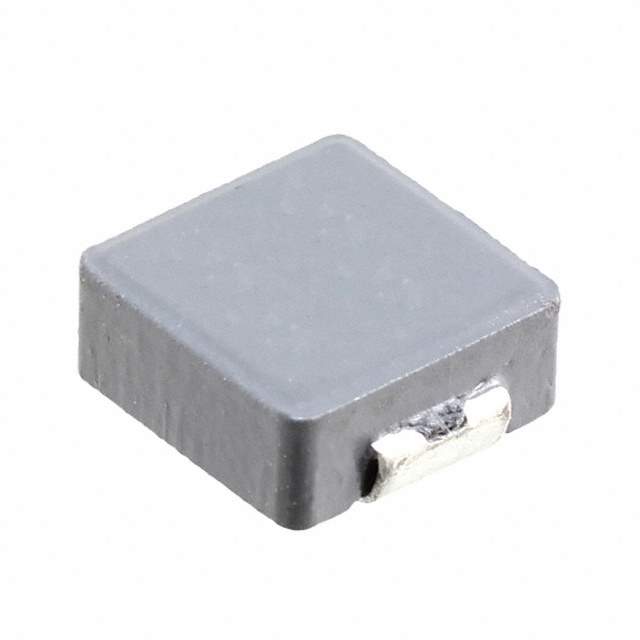

SRP7028A-R33M Real Image
Same model may have multiple batches, images only for reference.

SRP7028A-R33M

Part No SRP7028A-R33M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP7028A-R33M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP7028A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 330 nH
Tolerance ±20%
Current Rating (Amps) 20 A
Current - Saturation (Isat) 32A
Shielding Shielded
DC Resistance (DCR) 3.9mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 140MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRP7028A
Other Names SRP7028A-R33MTR,SRP7028A-R33MDKR,SRP7028A-R33MCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273809-SRP7028A-R33M
Ultra Librarian 3D Model Ultra Librarian SRP7028A-R33M CAD Model

Description

The Bourns Inc. SRP7028A-R33M inductor is a surface mount device that is shielded and has a tolerance of ±20%.

  • Type: Drum core, wirewound
  • Package: Tape and reel
  • Inductance: 330nH
  • Q @ Freq: 10 @ 100kHz
  • Current Rating: 20A
  • DC Resistance (DCR): 3.9mOhm Max
  • Temperature Range: -40°C to 150°C
  • Size: 0.287” L x 0.260” W (7.30mm x 6.60mm)
  • Height: 0.118” (3.00mm)
  • AEC-Q200 Rated: Yes
  • REACH: Unaffected
