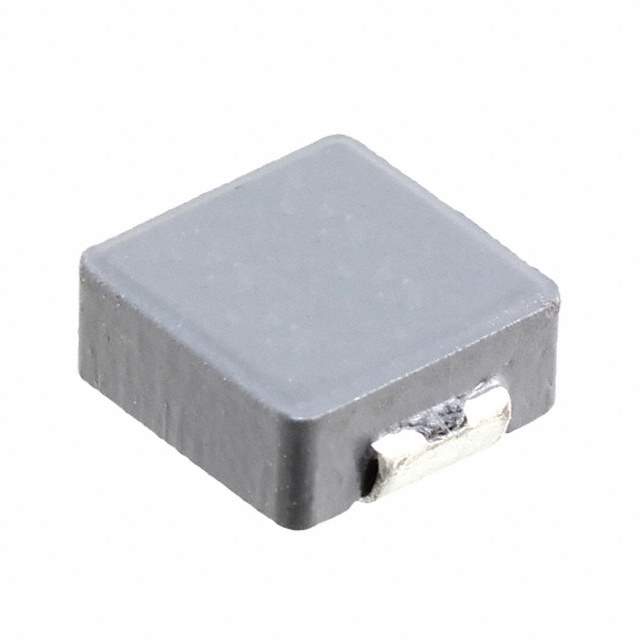

SRP7028C-R15M Real Image
Same model may have multiple batches, images only for reference.

SRP7028C-R15M

Part No SRP7028C-R15M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP7028C-R15M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP7028C
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 150 nH
Tolerance ±20%
Current Rating (Amps) 27 A
Current - Saturation (Isat) 50A
Shielding Shielded
DC Resistance (DCR) 1.9mOhm Max
Q @ Freq 5 @ 100kHz
Frequency - Self Resonant 190MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.280" L x 0.260" W (7.10mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
Other Names SRP7028C-R15MTR,SRP7028C-R15MDKR,SRP7028C-R15MCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273804-SRP7028C-R15M
Ultra Librarian 3D Model Ultra Librarian SRP7028C-R15M CAD Model

Description

The SRP7028C-R15M is a wirewound drum core inductor from Bourns Inc.

  • Inductance: 150 nH
  • Tolerance: ±20%
  • Mounting: Surface mount technology
  • Standard Package: 1,000
  • Current Rating: 27 A
  • Q @ Freq: 5 @ 100kHz
  • ROHS Compliant: Yes
  • ECCN: EAR99
