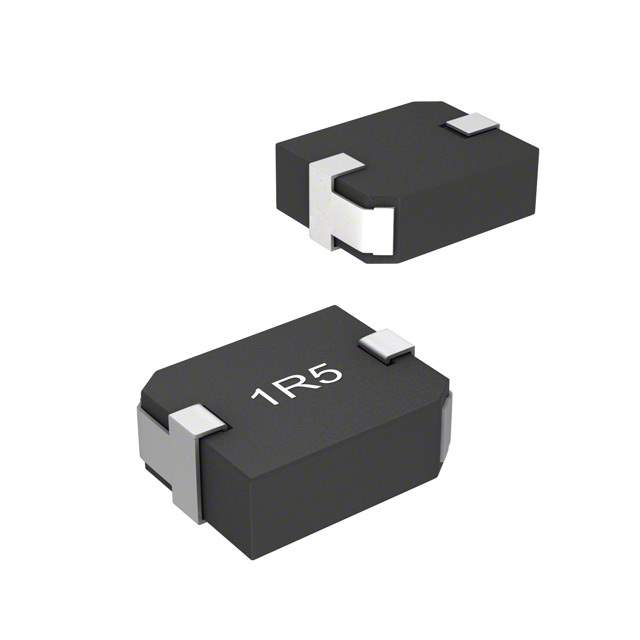

Same model may have multiple batches, images only for reference.

SRP7030-R72M

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP7030-R72M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP7030-R72M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP7030
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Iron
Inductance	720 nH
Tolerance	±20%
Current Rating (Amps)	15.5 A
Current - Saturation (Isat)	23A
Shielding	Shielded
DC Resistance (DCR)	5.5mOhm Max
Temperature Range - Operating	-55°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max)	0.126" (3.20mm)
Base Product Number	SRP7030
Other Names	SRP7030-R72MDKR,SRP7030-R72M,SRP7030-R72MCT,SRP7030-R72MTR
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273793-SRP7030-R72M
Ultra Librarian 3D Model	Ultra Librarian SRP7030-R72M CAD Model

Alternative Products

Description

The SRP7030-R72M is a drum core, wirewound inductor from Bourns Inc.

Inductance: 720 nH
Tolerance: ±20%
Core Material: Iron
DC Resistance: 5.5mOhm Max
Current Saturation: 23A
Operating Temperature: -55°C to 150°C
Package: Non-standard tape and reel
Dimensions: 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height: 0.126" (3.20mm)
