Same model may have multiple batches, images only for reference.

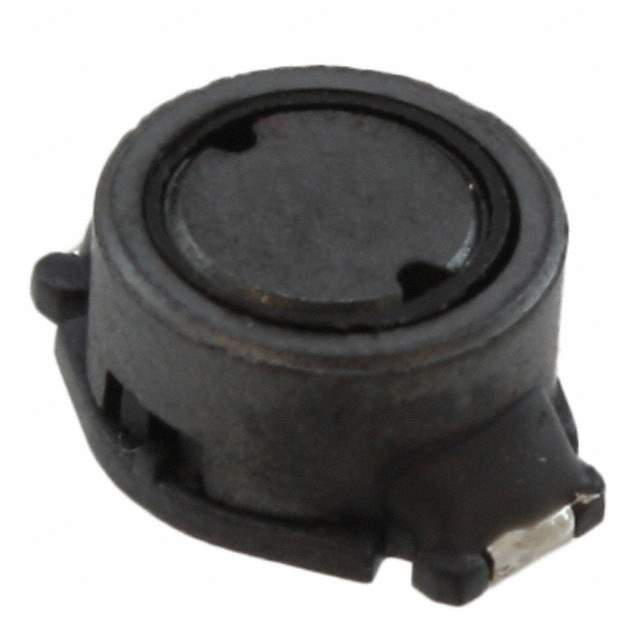

SRR0805-270Y Real Image
Same model may have multiple batches, images only for reference.

SRR0805-270Y

Part No SRR0805-270Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0805-270Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0805
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 27 µH
Tolerance ±15%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1.4A
Shielding Shielded
DC Resistance (DCR) 200mOhm Max
Q @ Freq 35 @ 2.52MHz
Frequency - Self Resonant 15.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.413" L x 0.315" W (10.50mm x 8.00mm)
Height - Seated (Max) 0.185" (4.70mm)
Base Product Number SRR0805
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273690-SRR0805-270Y
Ultra Librarian 3D Model Ultra Librarian SRR0805-270Y CAD Model

Description

The Bourns Inc. SRR0805-270Y is a drum core, wirewound inductor with a ferrite core material.

  • Inductance: 27 µH
  • Tolerance: ±15%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 1A
  • Shielded: Yes
  • Package: tape and reel
  • Standard Packages: 1000
  • Size or Dimension: 0.413" L x 0.315" W (10.50mm x 8.00mm)
  • Height: 0.185" (4.70mm)
  • ROHS3 Compliant: Yes
  • REACH: Not affected
