Same model may have multiple batches, images only for reference.

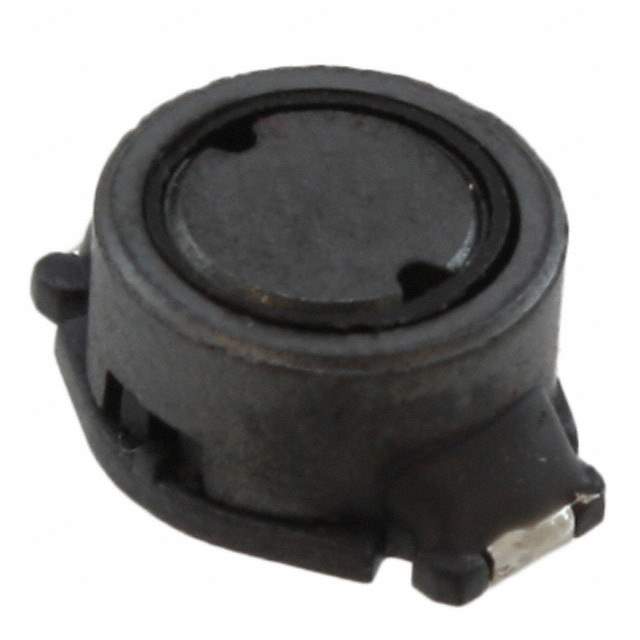

SRR0805-390Y Real Image
Same model may have multiple batches, images only for reference.

SRR0805-390Y

Part No SRR0805-390Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0805-390Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0805
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 39 µH
Tolerance ±15%
Current Rating (Amps) 840 mA
Current - Saturation (Isat) 1.1A
Shielding Shielded
DC Resistance (DCR) 260mOhm Max
Q @ Freq 35 @ 2.52MHz
Frequency - Self Resonant 12MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.413" L x 0.315" W (10.50mm x 8.00mm)
Height - Seated (Max) 0.185" (4.70mm)
Base Product Number SRR0805
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273686-SRR0805-390Y
Ultra Librarian 3D Model Ultra Librarian SRR0805-390Y CAD Model

Description

The Bourns Inc. SRR0805 Drum Core, Wirewound Fixed Inductors are high-quality electronic components that are designed for various applications.

  • Packaging: tape & reel (TR)
  • Shielded: Yes
  • Inductance: 39 µH
  • Height: 0.185" (4.70mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±15%
  • Material - Core: ferrite
  • Q @ Freq: 35 @ 2.52MHz
  • Frequency - Self-Resonant: 12MHz
  • Package / Case: nonstandard
  • MSL Level: 1 (unlimited)
  • Current Rating (Amps): 840 mA
  • Inductance Frequency - Test: 1 kHz
  • REACH Status: REACH unaffected
  • HTSUS: 8504.50.4000
