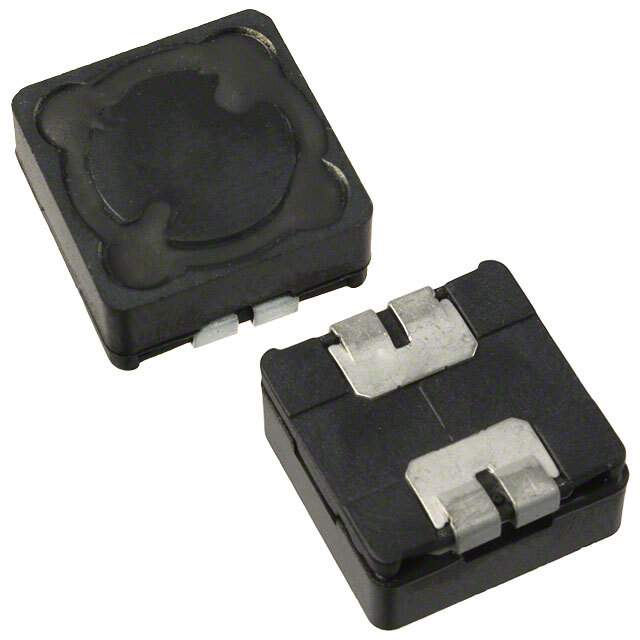

Same model may have multiple batches, images only for reference.

SRR1206-101YL

Name: SRR1206-101YL
Brand: Bourns Inc.
SKU: 1327810
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR1206-101YL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 100UH 1.1A 220MOHM SMD / 100 µH Shielded Drum Core, Wirewound Inductor 1.1 A 220mOhm Max Nonstandard
Datasheet	SRR1206-101YL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Bourns Inc.
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	100 µH
Tolerance	±15%
Current Rating (Amps)	1.1 A
Current - Saturation (Isat)	1.9A
Shielding	Shielded
DC Resistance (DCR)	220mOhm Max
Q @ Freq	13 @ 796kHz
Frequency - Self Resonant	6MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max)	0.256" (6.50mm)
Base Product Number	SRR1206
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	SRR1206-101YLTR,SRR1206-101YLCT,-SRR1206-101YLCT,SRR1206101YL,-SRR1206-101YLTR,-SRR1206-101YL
Standard Package	600
Win Source Part Number	1327810-SRR1206-101YL
Ultra Librarian 3D Model	Ultra Librarian SRR1206-101YL CAD Model

Alternative Products

Description

The SRR1206-101YL is a fixed inductor electronic component manufactured by Bourns Inc.

Type: Drum Core, Wirewound
Shielding: Shielded
Inductance: 100μH
Tolerance: ±15%
Packaging: Reel
DC Resistance: 220mOhm max
Size/Dimension: 0.500" L x 0.500" W (12.70mm x 12.70mm)
Temperature Range: -40°C to 125°C
