Same model may have multiple batches, images only for reference.

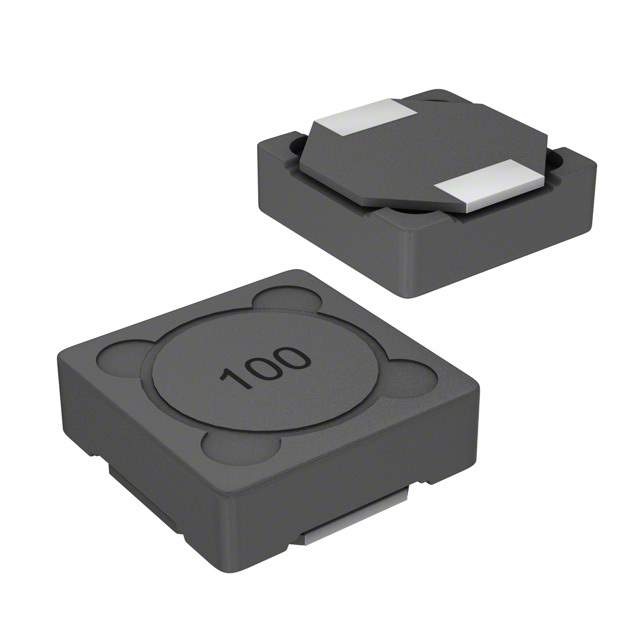

SRR1240-271K Real Image
Same model may have multiple batches, images only for reference.

SRR1240-271K

Part No SRR1240-271K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1240-271K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1240
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 270 µH
Tolerance ±10%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 800mA
Shielding Shielded
DC Resistance (DCR) 780mOhm Max
Q @ Freq 10 @ 796kHz
Frequency - Self Resonant 6MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number SRR1240
Other Names SRR1240-271KCT,SRR1240-271KDKR,-SRR1240-271K,-SRR1240-271KCT,SRR1240-271KTR,-SRR1240-271KTR,SRR1240-271K,-SRR1240-271K,SRR1240271K
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273459-SRR1240-271K
Ultra Librarian 3D Model Ultra Librarian SRR1240-271K CAD Model

Description

The SRR1240-271K is a shielded drum core wirewound fixed inductor from Bourns Inc.

  • Inductance: 270 µH
  • Tolerance: ±10%
  • DC Resistance (DCR): 780mOhm Max
  • Current Rating: 800 mA
  • Core Material: Ferrite
  • Q @ Freq: 10 @ 796kHz
  • Frequency - Self-Resonant: 6MHz
  • Height-Seated (max): 0.177" (4.50mm)
  • Package/Case: Nonstandard
  • Temperature Range: -40°C to 125°C
