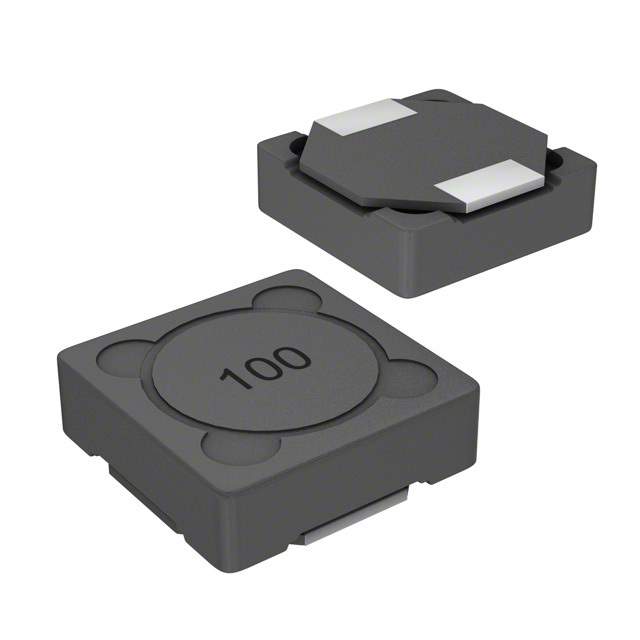

SRR1240-561K

Part No SRR1240-561K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description SRR1240-561K
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1240
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 560 µH
Tolerance ±10%
Current Rating (Amps) 550 mA
Current - Saturation (Isat) 520mA
Shielding Shielded
DC Resistance (DCR) 1.5Ohm Max
Q @ Freq 12 @ 796kHz
Frequency - Self Resonant 4MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number SRR1240
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273448-SRR1240-561K
Ultra Librarian 3D Model Ultra Librarian SRR1240-561K CAD Model

Description

The Bourns Inc. SRR1240-561K is a drum core, wirewound inductor with a shielding feature.

  • Standard Package: 800
  • Mounting: SMD (SMT) technology
  • Inductance: 560 µH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Q @ Freq: 12 @ 796kHz
  • Frequency of Self-Resonant: 4MHz
  • DC Resistance (DCR): 1.5 Ohm Max
  • Current Rating (Amps): 550 mA
