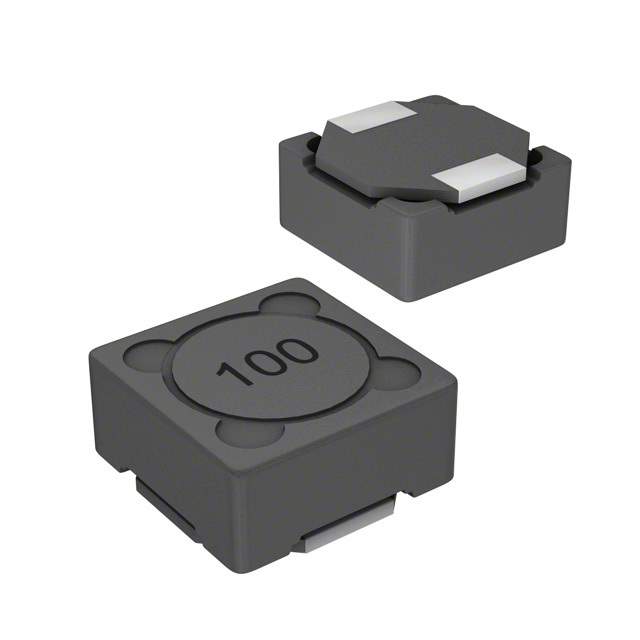

Same model may have multiple batches, images only for reference.

SRR1260-2R2Y

Name: SRR1260-2R2Y
Brand: Bourns Inc.
SKU: 1273441
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR1260-2R2Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR1260-2R2Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR1260
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.2 µH
Tolerance	±30%
Current Rating (Amps)	8.2 A
Current - Saturation (Isat)	8.5A
Shielding	Shielded
DC Resistance (DCR)	10.5mOhm Max
Q @ Freq	22 @ 7.96MHz
Frequency - Self Resonant	70MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.256" (6.50mm)
Base Product Number	SRR1260
Other Names	SRR1260-2R2YCT,SRR1260-2R2YTR,SRR1260-2R2Y,SRR1260-2R2YDKR,SRR12602R2Y
Standard Package	600
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273441-SRR1260-2R2Y
Ultra Librarian 3D Model	Ultra Librarian SRR1260-2R2Y CAD Model

Alternative Products

Description

The SRR1260-2R2Y is a drum core, wirewound inductor from Bourns Inc.

Type: Shielded
Inductance: 2.2 µH
Tolerance: ±30%
Height: 0.256" (6.50mm)
DC Resistance: 10.5mOhm max
Current Rating: 8.2A
Saturation Current: 8.5A
Q Value: 22 @ 7.96MHz
Self-Resonant Frequency: 70MHz
Mounting: SMD (SMT)
Package/Case: Non-standard
Temperature Range: -40°C to 125°C
Core Material: Ferrite
Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
Packaging: Tape and reel
Standard Package: 600
REACH: Unaffected
ECCN: EAR99
