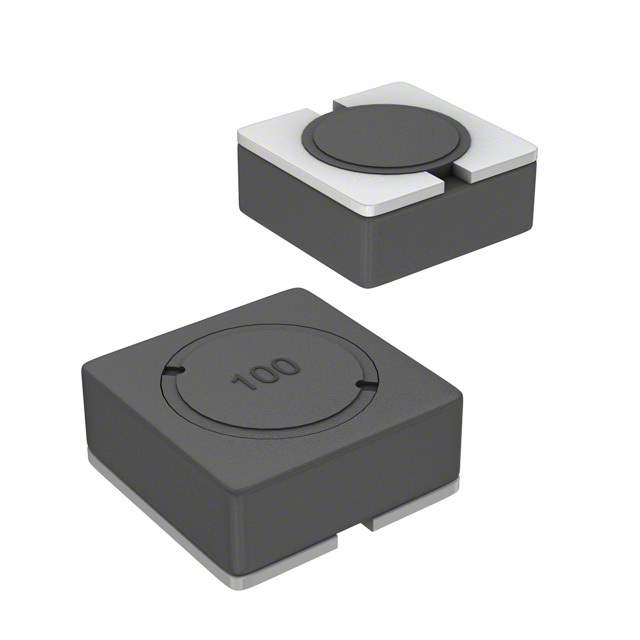

SRR6028-120Y Real Image
Same model may have multiple batches, images only for reference.

SRR6028-120Y

Part No SRR6028-120Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR6028-120Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR6028
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 12 µH
Tolerance ±30%
Current Rating (Amps) 1.9 A
Current - Saturation (Isat) 1.5A
Shielding Shielded
DC Resistance (DCR) 70mOhm Max
Q @ Freq 10 @ 2.52MHz
Frequency - Self Resonant 24MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRR6028
Other Names SRR6028-120YDKR,SRR6028-120YCT,SRR6028-120YTR,-SRR6028-120YTR,-SRR6028-120Y,SRR6028-120Y,-SRR6028-120Y,-SRR6028-120YCT,SRR6028120Y
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273236-SRR6028-120Y
Ultra Librarian 3D Model Ultra Librarian SRR6028-120Y CAD Model

Description

The electronic component with Id 1126616 is a fixed inductor from the SRR6028 series manufactured by Bourns Inc.

  • Type: Drum core, wirewound
  • Shielding: Yes
  • Package: Tape and reel
  • Standard Package: 500
  • Mounting: SMD (SMT)
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Q @ Freq: 10 @ 2.52MHz
  • Self-Resonant Frequency: 24MHz
  • DC Resistance: 70mOhm Max
  • Device Package: Nonstandard
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.268" L x 0.268" W (6.80mm x 6.80mm)
  • MSL Level: 1 (Unlimited)
  • Current Rating: 1.9 A
  • Inductance Frequency: 100 kHz
  • REACH Status: Unaffected
  • HTSUS: 8504.50.8000
