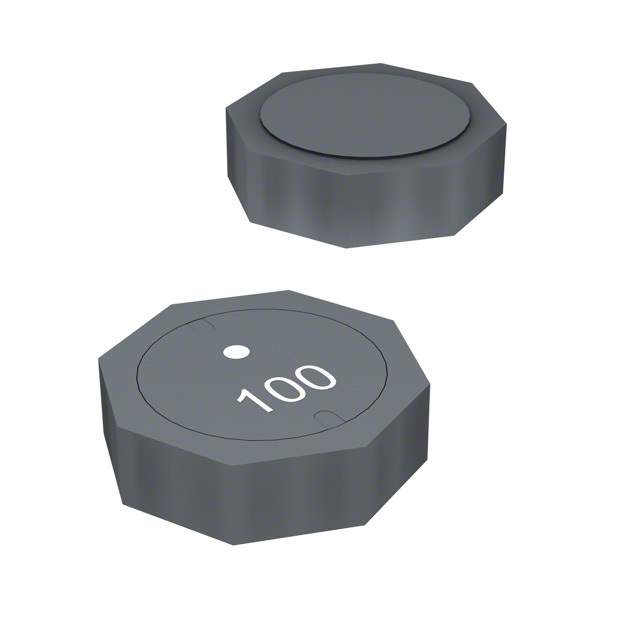

SRU1028-820Y Real Image
Same model may have multiple batches, images only for reference.

SRU1028-820Y

Part No SRU1028-820Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRU1028-820Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU1028
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 82 µH
Tolerance ±30%
Current Rating (Amps) 900 mA
Current - Saturation (Isat) 850mA
Shielding Shielded
DC Resistance (DCR) 323mOhm
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 8MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.122" (3.10mm)
Base Product Number SRU1028
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273167-SRU1028-820Y
Ultra Librarian 3D Model Ultra Librarian SRU1028-820Y CAD Model

Description

The SRU1028 series drum core inductor is a wirewound type that comes in a tape and reel package.

  • Shielded: Yes
  • Inductance: 82 µH
  • Height: 0.122" (3.10mm) when seated
  • Standard Package: 1,000
  • Core Material: Ferrite
  • Q @ Freq: 20 @ 2.52MHz
  • Frequency Self-Resonates: 8MHz
  • DC Resistance (DCR): 323mOhm
  • Current Rating: 900 mA
  • Operating Temperature Range: -40°C ~ 125°C
  • Dimensions: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Manufacturer: Bourns Inc.
