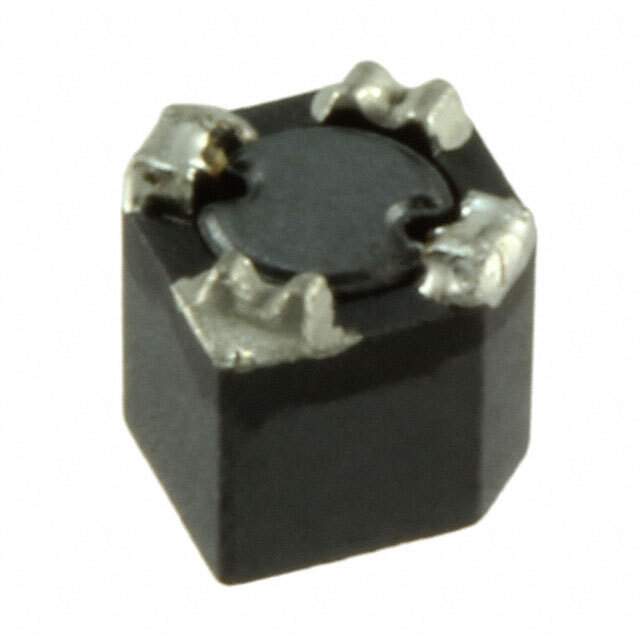

Same model may have multiple batches, images only for reference.

SRU3028A-100Y

Name: SRU3028A-100Y
Brand: Bourns Inc.
SKU: 1273064
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SRU3028A-100Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRU3028A-100Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRU3028A
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	10 µH
Tolerance	±30%
Current Rating (Amps)	720 mA
Current - Saturation (Isat)	860mA
Shielding	Shielded
DC Resistance (DCR)	200mOhm Max
Q @ Freq	20 @ 2.52MHz
Frequency - Self Resonant	35MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.138" L x 0.130" W (3.50mm x 3.30mm)
Height - Seated (Max)	0.118" (3.00mm)
Base Product Number	SRU3028A
Other Names	SRU3028A-100YDKR,SRU3028A-100YTR,SRU3028A-100YCT,SRU3028A-100Y
Standard Package	600
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273064-SRU3028A-100Y
Ultra Librarian 3D Model	Ultra Librarian SRU3028A-100Y CAD Model

Alternative Products

Description

The SRU3028A fixed inductor is a drum core, wirewound type inductor with a shielding feature.

Inductance: 10 µH
Tolerance: ±30%
Core Material: Ferrite
Q @ Freq: 20 @ 2.52MHz
AEC-Q200: Rated
Temperature Range: -40°C to 125°C
Package/Case: Nonstandard
Mounting: SMD (SMT) technology
DC Resistance (DCR): 200mOhm Max
Current Rating (Amps): 720 mA
