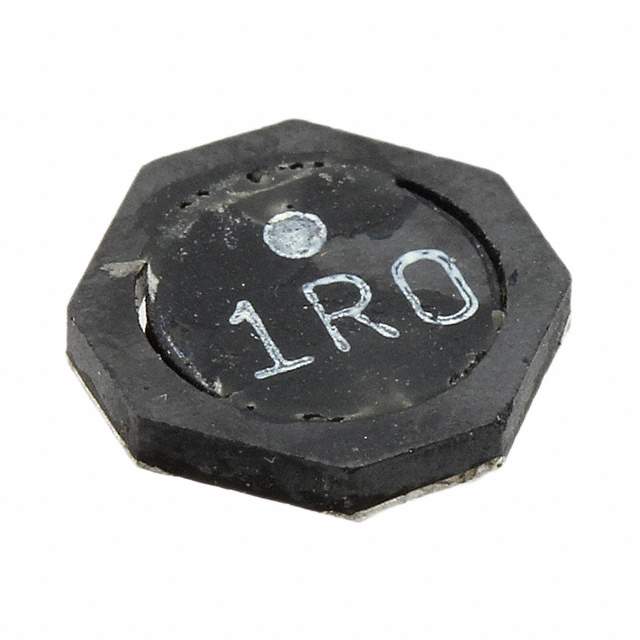

SRU6013-3R3Y Real Image
Same model may have multiple batches, images only for reference.

SRU6013-3R3Y

Part No SRU6013-3R3Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRU6013-3R3Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU6013
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±30%
Current Rating (Amps) 2.35 A
Current - Saturation (Isat) 1.75A
Shielding Shielded
DC Resistance (DCR) 60mOhm Max
Q @ Freq 10 @ 7.96MHz
Frequency - Self Resonant 70MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.256" L x 0.244" W (6.50mm x 6.20mm)
Height - Seated (Max) 0.063" (1.60mm)
Base Product Number SRU6013
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273024-SRU6013-3R3Y
Ultra Librarian 3D Model Ultra Librarian SRU6013-3R3Y CAD Model

Description

The SRU6013-3R3Y is a fixed inductor manufactured by Bourns Inc.

  • Win Source Part Number: 1273024-SRU6013-3R3Y
  • Series: SRU6013
  • Product Type: Drum core, wirewound
  • Shielding: Yes
  • Inductance: 3.3 µH
  • Tolerance: ±30%
  • Height - Seated (max): 0.063" (1.60mm)
  • Standard Package: 1,000
  • Package Type: Tape & Reel (TR)
  • Mounting: Surface mounted
  • Material - Core: Ferrite
  • Q @ Freq: 10 @ 7.96MHz
  • Frequency - Self-Resonant: 70MHz
  • DC Resistance (DCR): 60mOhm Max
  • Package/Case Type: Nonstandard
  • Supplier Device Package: Not available
  • Temperature Range - Operating: -40°C ~ 125°C
  • Dimension: 0.256" L x 0.244" W (6.50mm x 6.20mm)
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.50.4000
  • Current Rating (amps): 2.35 A
  • Inductance Frequency - Test: 100 kHz
