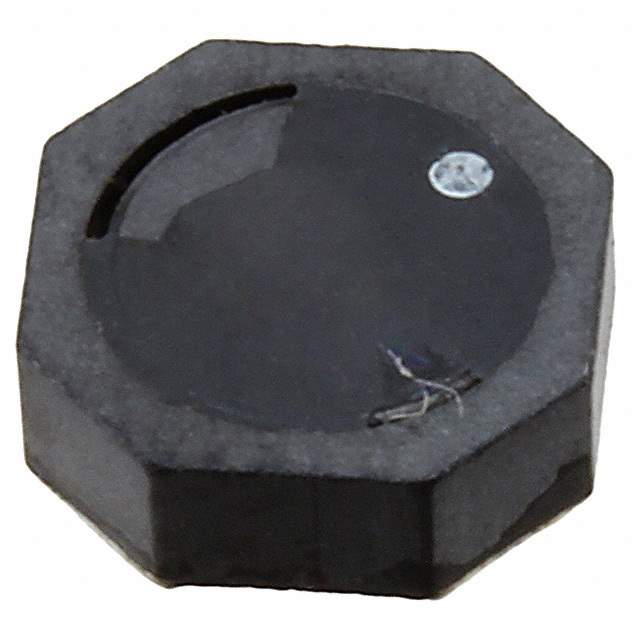

SRU6025-2R2Y Real Image
Same model may have multiple batches, images only for reference.

SRU6025-2R2Y

Part No SRU6025-2R2Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRU6025-2R2Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU6025
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±30%
Current Rating (Amps) 3.4 A
Current - Saturation (Isat) 2.35A
Shielding Shielded
DC Resistance (DCR) 24mOhm Max
Q @ Freq 8 @ 7.96MHz
Frequency - Self Resonant 65MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.256" L x 0.244" W (6.50mm x 6.20mm)
Height - Seated (Max) 0.110" (2.80mm)
Base Product Number SRU6025
Other Names SRU6025-2R2Y,SRU6025-2R2YCT,SRU6025-2R2YDKR,SRU6025-2R2YTR,SRU60252R2Y
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273009-SRU6025-2R2Y
Ultra Librarian 3D Model Ultra Librarian SRU6025-2R2Y CAD Model

Description

The SRU6025 is a drum core, wirewound fixed inductor that is shielded.

  • Inductance: 2.2 µH
  • Tolerance: ±30%
  • Height When Seated: 0.110" (2.80mm)
  • Package: Tape and reel
  • Mounting: SMD (SMT)
  • Core Material: Ferrite
  • Q @ Freq: 8 @ 7.96MHz
  • Frequency for Self-Resonant: 65MHz
  • Package/Case: Nonstandard
  • Dimension: 0.256" L x 0.244" W (6.50mm x 6.20mm)
  • Current Rating: 3.4 A
  • Manufacturer: Bourns Inc.
