Same model may have multiple batches, images only for reference.

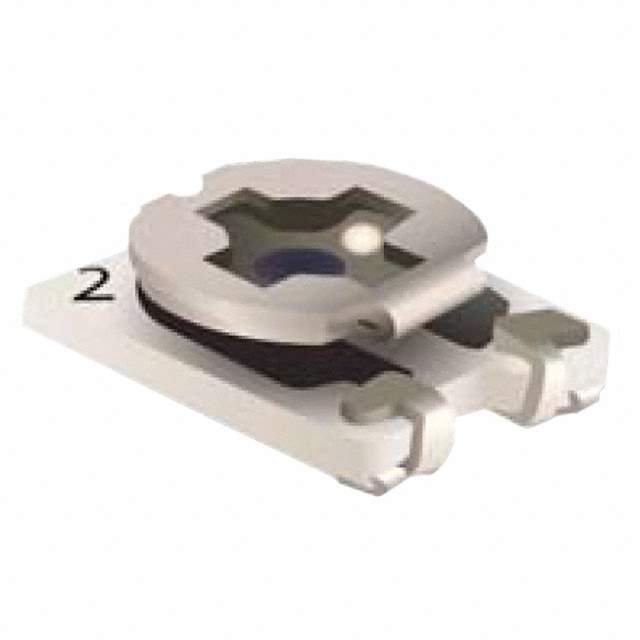

TC42X-2-203E Real Image
Same model may have multiple batches, images only for reference.

TC42X-2-203E

Part No TC42X-2-203E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 20K OHM 0.1W J LEAD TOP / 20 kOhms 0.1W, 1/10W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet
TC42X-2-203E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® TC42 - Open Frame
Package Tape & Reel
Resistance 20 kOhms
Power (Watts) 0.1W, 1/10W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.102" x 0.087" Face (2.60mm x 2.20mm)
Base Product Number TC42X
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.31.0000
California Prop 65 Warning Information
Win Source Part Number 1342278-TC42X-2-203E
Ultra Librarian 3D Model Ultra Librarian TC42X-2-203E CAD Model

Description

The Bourns Inc. Trimpot® TC42 - Open Frame is a variable resistor that belongs to the potentiometers and variable resistors - trimmer potentiometers category.

  • Series: Trimpot® TC42 - Open Frame
  • Adjustment Type: Top Adjustment
  • Termination Style: J Lead
  • Mounting Type: Surface Mount
  • Package Size: 0.102" x 0.087" Face (2.60mm x 2.20mm)
  • Package: Tape & Reel
  • Resistance: 20 kOhms
  • Tolerance: ±25%
  • Power Rating: 0.1W, 1/10W
  • Temperature Coefficient: ±250ppm/°C
  • Number of Turns: 1
  • Resistive Material: Cermet
  • Manufacturer: Bourns Inc.
