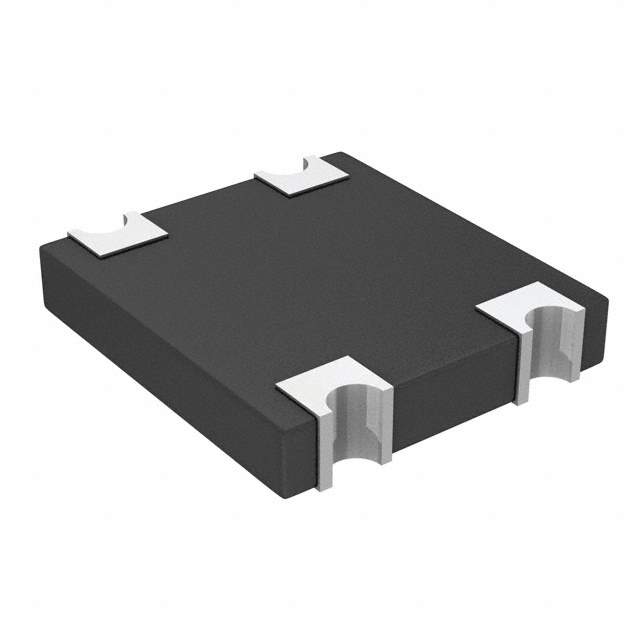

CD2320-B1600 Real Image
Same model may have multiple batches, images only for reference.

CD2320-B1600

Part No CD2320-B1600
Manufacturer Bourns Inc.
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 600V 1A 2320
Datasheet
CD2320-B1600 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Bridge Rectifier Single Phase Schottky 600 V Surface Mount 2320
Manufacturer Bourns Inc.
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Surface Mount
Package Chip, Concave Terminals
Case / Package 2320
Family Name CD2320
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number CD2320-B1600-ND, CD2320-B1600DKR, CD2320-B1600TR, CD2320-B1600CT
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866076-CD2320-B1600
Ultra Librarian 3D Model Ultra Librarian CD2320-B1600 CAD Model

Description

The Bourns Inc. CD2320-B1600 is a bridge rectifier with a single-phase Schottky and a voltage rating of 600V. Bourns Inc. manufactures it.

  • Phase: single-phase Schottky
  • Voltage rating: 600V
  • Mounting: surface mount
  • Package: chip with concave terminals
  • Status: obsolete
  • Supply and demand status: limited
  • Operating temperature range: -55°C to 175°C (TJ)
  • ECCN: EAR99 compliant
  • Package/case size: 2320
  • Popularity: medium
  • Package: reels of 5000 units per package
