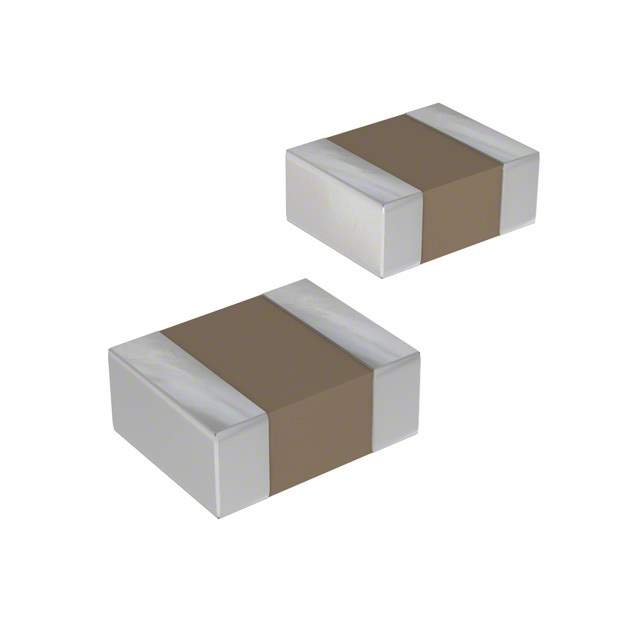

CF322513-220K Real Image
Same model may have multiple batches, images only for reference.

CF322513-220K

Part No CF322513-220K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 110MA 3.7 OHM SMD
Datasheet
CF322513-220K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Multilayer
Material - Core Ferrite
Inductance 22μH
Tolerance ±10%
Current Rating 110mA
DC Resistance (DCR) 3.7 Ohm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 25MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 2.52MHz
Mounting SMD (SMT)
Case / Package 1210
Height - Seated (Max) 0.059" (1.50mm)
Win Source Part Number 1029076-CF322513-220K
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CF322513-220K CAD Model

Description

The Bourns Inc. CF322513-220K is a multilayer ferrite core inductor with an inductance of 22μH and a current rating of 110mA.

  • Inductance: 22μH
  • Current Rating: 110mA
  • Tolerance: ±10%
  • DC Resistance: 3.7 Ohms max
  • Height: 0.059" (1.50mm)
  • Mounting: SMD (SMT)
  • Q @ Freq: 30 @ 2.52MHz
  • Self-Resonant Frequency: 25MHz
  • Category: Inductors, Coils, Chokes
  • Case Size: 1210
  • Product Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Limited
