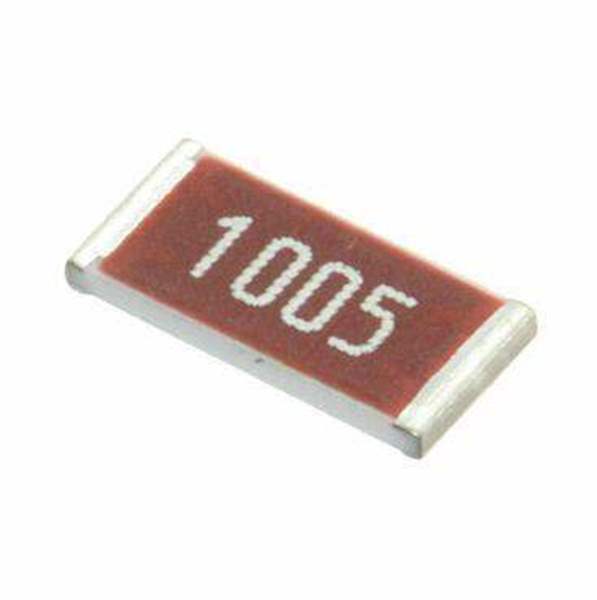

CHV2512-JW-106ELFBourns Inc.
Same model may have multiple batches, images only for reference.

CHV2512-JW-106ELF

Part No CHV2512-JW-106ELF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 10M OHM 5% 1W 2512
Datasheet
CHV2512-JW-106ELF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Category Resistors Chip Resistor - Surface Mount
Part Status Active
Resistance 10 MOhms
Power (Watts) 1W
Composition Thick Film
Features High Voltage
Temperature Coefficient ±200ppm/°C
Operating Temperature -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Size / Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Win Source Part Number WS1308728-CHV2512-JW-106ELF
Ultra Librarian 3D Model Ultra Librarian CHV2512-JW-106ELF CAD Model

Description

10 MOhms ±5% 1W Chip Resistor 2512 (6432 Metric) High Voltage Thick Film
