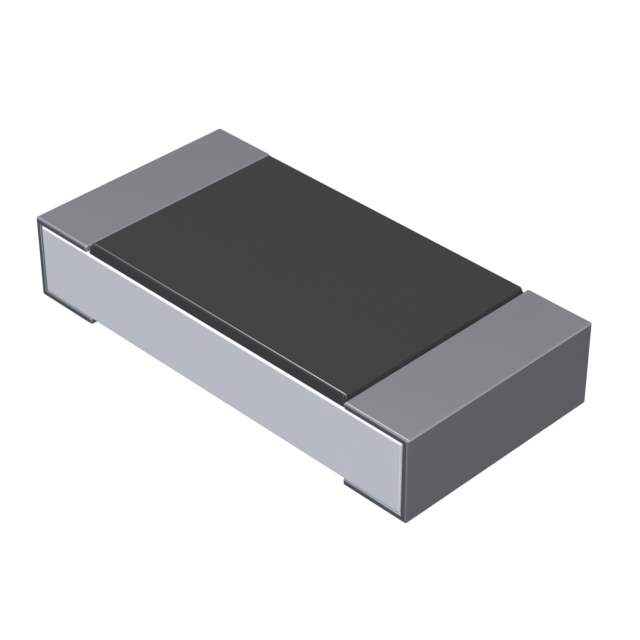

Same model may have multiple batches, images only for reference.

CR1206-JW-105ELF

Name: CR1206-JW-105ELF
Brand: Bourns Inc.
SKU: 1211883
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CR1206-JW-105ELF
Manufacturer	Bourns Inc.
Catalog	Chip Resistor - Surface Mount
Description	RES SMD 1M OHM 5% 1/4W 1206 / 1 MOhms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Moisture Resistant Thick Film
Datasheet	CR1206-JW-105ELF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Bourns Inc.
Series	CR1206
Package	Tape & Reel
Resistance	1 mOhms
Tolerance	±5%
Power (Watts)	0.25W, 1/4W
Composition	Thick Film
Features	Moisture Resistant
Temperature Coefficient	±200ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	1206 (3216 Metric)
Supplier Device Package	1206
Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.030" (0.75mm)
Number of Terminations	2
Base Product Number	CR1206
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0030
Other Names	118-CR1206-JW-105ELFCT,CR1206-JW-105ELFTR-ND,-CR1206-JW-105ELFCT,CR1206-JW-105ELFCT-ND,118-CR1206-JW-105ELFDKR,118-CR1206-JW-105ELFTR,CR1206-JW-105ELF-ND,CR1206-JW-105ELFCT,CR1206-JW-105ELFTR,-CR1206-JW-105ELFTR
Standard Package	5,000
Win Source Part Number	1211883-CR1206-JW-105ELF
Ultra Librarian 3D Model	Ultra Librarian CR1206-JW-105ELF CAD Model

Alternative Products

Description

This electronic component is a chip resistor from Bourns Inc. The product is part of the CR1206-JW-105ELF CR1206 series and has a package type of Tape & Reel.

Power: 0.25W
Tolerance: ±5%
Resistance: 1 mOhms
Temperature Coefficient: ±200ppm/°C
Standard Package: 5,000
Package/Case: 1206 (3216 Metric)
Moisture Resistant: Yes
ECCN: EAR99
HTSUS: 8533.21.0030
Win Source Part Number: 1211883-CR1206-JW-105ELF
