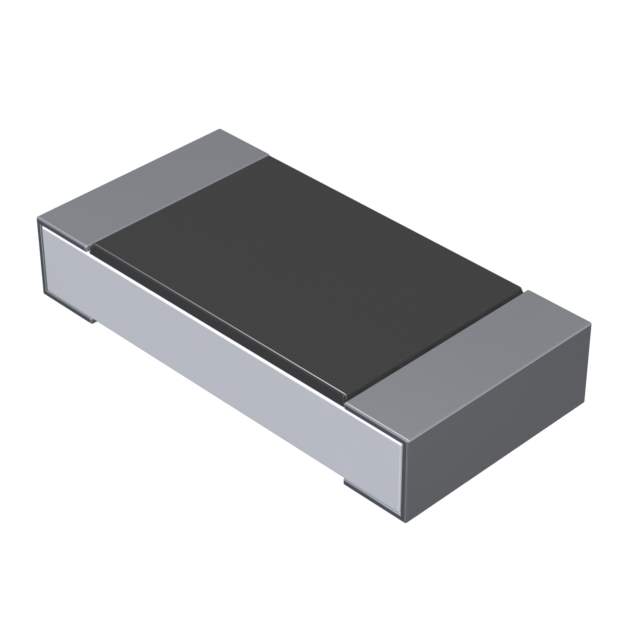

Same model may have multiple batches, images only for reference.

CR1206-JW-363ELF

Name: CR1206-JW-363ELF
Brand: Bourns Inc.
SKU: 961258
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CR1206-JW-363ELF
Manufacturer	Bourns Inc.
Catalog	Chip Resistor - Surface Mount
Description	RES SMD 36K OHM 5% 1/4W 1206 / 36 kOhms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Moisture Resistant Thick Film
Datasheet	CR1206-JW-363ELF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Bourns Inc.
Series	CR1206
Package	Tape & Reel (TR)
Resistance	36 kOhms
Tolerance	±5%
Power (Watts)	0.25W, 1/4W
Composition	Thick Film
Features	Moisture Resistant
Temperature Coefficient	±200ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	1206 (3216 Metric)
Supplier Device Package	1206
Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.030" (0.75mm)
Number of Terminations	2
Base Product Number	CR1206
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0030
Standard Package	5,000
Win Source Part Number	961258-CR1206-JW-363ELF
Ultra Librarian 3D Model	Ultra Librarian CR1206-JW-363ELF CAD Model

Alternative Products

Description

The CR1206-JW-363ELF chip resistor from Bourns Inc. has a resistance of 36k Ohms with a tolerance of ±5% and a temperature coefficient of ±200ppm/°C.

Power Rating: 0.25W (1/4W)
Composition: Thick film
Terminations: 2
Mounting: Tape & reel (TR)
Package/Case: 1206 (3216 Metric)
Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
Operating Temperature Range: -55°C to 155°C
REACH: Unaffected
