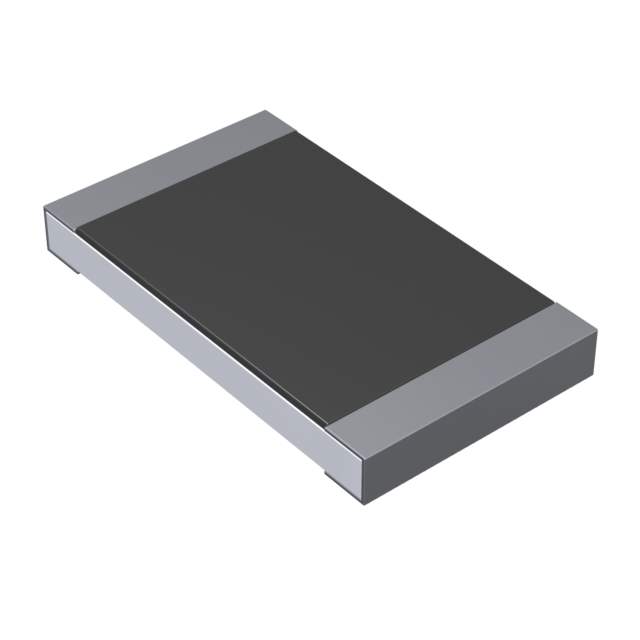

CR2512-JW-153ELF Real Image
Same model may have multiple batches, images only for reference.

CR2512-JW-153ELF

Part No CR2512-JW-153ELF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 15K OHM 5% 1W 2512  /  15 kOhms ±5% 1W Chip Resistor 2512 (6432 Metric) Thick Film
Datasheet
CR2512-JW-153ELF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Bourns Inc.
Series CR2512
Package Tape & Reel (TR)
Resistance 15 kOhms
Tolerance ±5%
Power (Watts) 1W
Composition Thick Film
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Dimension 0.248" L x 0.122" W (6.30mm x 3.10mm)
Height - Seated (Max) 0.030" (0.75mm)
Number of Terminations 2
Base Product Number CR2512
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 4,000
Win Source Part Number 1117916-CR2512-JW-153ELF
Ultra Librarian 3D Model Ultra Librarian CR2512-JW-153ELF CAD Model

Description

The CR2512-JW-153ELF is a chip resistor that is used in surface mount applications. It is manufactured by Bourns Inc..

  • Resistance: 15 kOhms
  • Power Rating: 1W
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Temperature Range: -55°C to 155°C
  • Mounting: Tape and Reel
  • Package: 2512 (6432 Metric)
  • Dimensions: 0.248" L x 0.122" W (6.30mm x 3.10mm)
