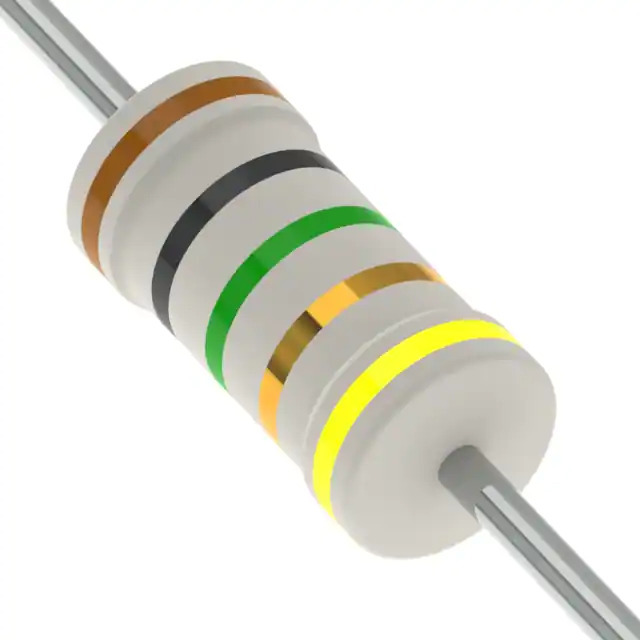

Same model may have multiple batches, images only for reference.
HHV-50JT-52-1M Yageo
Same model may have multiple batches, images only for reference.

HHV-50JT-52-1M

Part No HHV-50JT-52-1M
Manufacturer Yageo
Catalog Through Hole Resistors
Description RES 1M OHM 5% 1/2W AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr YAGEO
Series HHV
Product Status Active
Resistance 1 MOhms
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Metal Film
Features Flame Retardant Coating, High Voltage, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.130" Dia x 0.354" L (3.30mm x 9.00mm)
Height - Seated (Max) -
Number of Terminations 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1374816-HHV-50JT-52-1M
Ultra Librarian 3D Model Ultra Librarian HHV-50JT-52-1M CAD Model

Description

The 1374816-HHV-50JT-52-1M is a high voltage resistor with a resistance of 1 MOhms and a power rating of 0.5W. It has a tolerance of ±5% and a temperature coefficient of ±200ppm/°C.

  • Resistance: 1 MOhms
  • Power Rating: 0.5W
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Series: HHV
  • Mounting Type: Through-Hole
  • Package: Axial
  • Size: 0.130" diameter and 0.354" length
  • Coating: Flame Retardant
