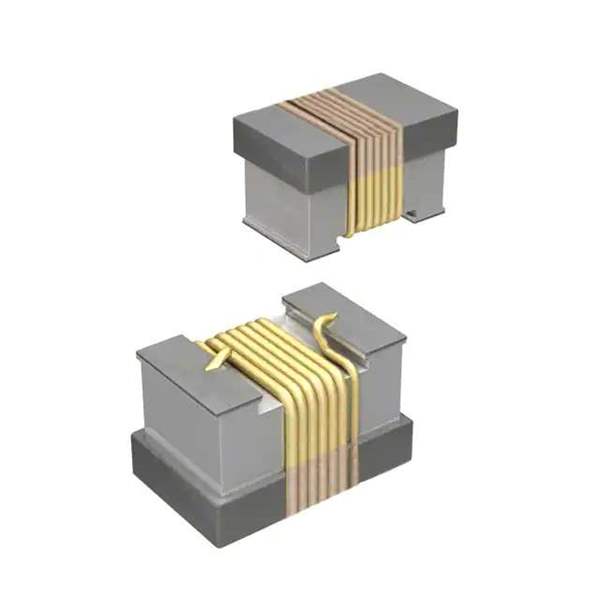

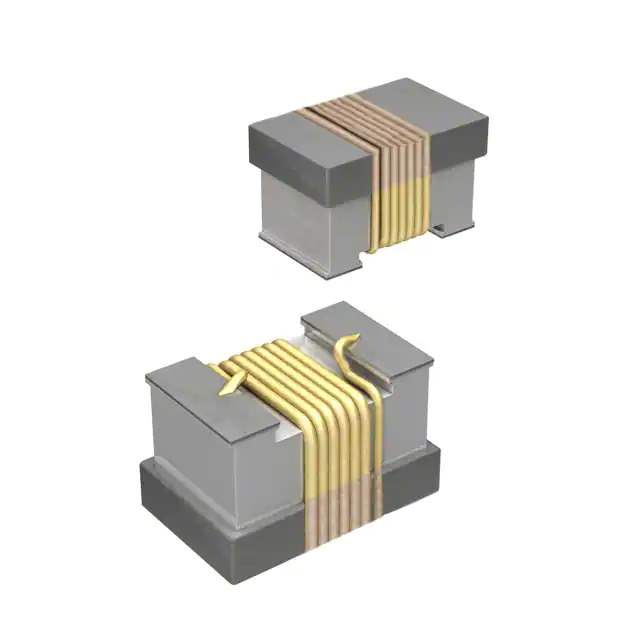

CW100505-56NJ Real Image
Same model may have multiple batches, images only for reference.

CW100505-56NJ

Part No CW100505-56NJ
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 56NH 200MA 970MOHM SMD
Datasheet
CW100505-56NJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Bourns Inc.
Series CW100505
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 56 nH
Tolerance ±5%
Current Rating (Amps) 200 mA
Shielding Unshielded
DC Resistance (DCR) 970mOhm
Q @ Freq 22 @ 200MHz
Frequency - Self Resonant 1.76GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 200 MHz
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max) 0.024" (0.60mm)
Base Product Number CW100505
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
California Prop 65 Warning Information
Win Source Part Number 745271-CW100505-56NJ
Ultra Librarian 3D Model Ultra Librarian CW100505-56NJ CAD Model

Description

The 745271-CW100505-56NJ is a fixed inductor from Bourns Inc.

  • Series: CW100505
  • Category: Inductors, Coils, Chokes - Fixed Inductors
  • Core Type: Drum core
  • Design: Wirewound
  • Inductance: 56nH
  • Package: Tape and reel
  • Mounting: Surface mount
  • Operating Temperature: -55°C to 125°C
