Same model may have multiple batches, images only for reference.

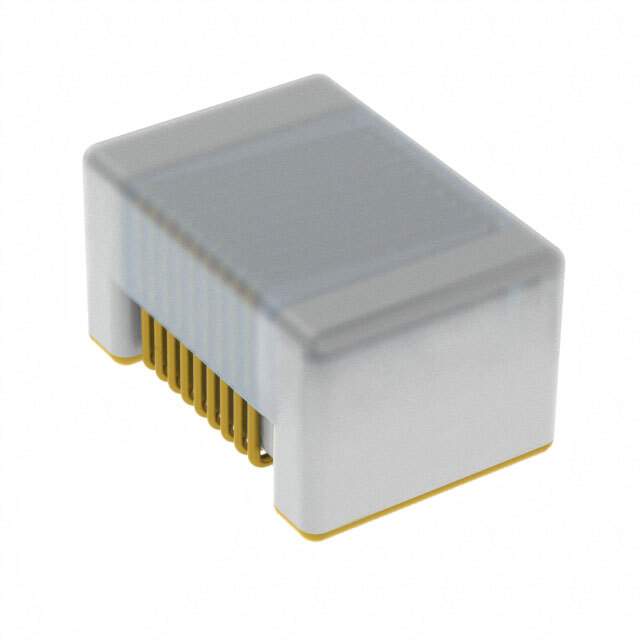

CW161009A-56NJ Real Image
Same model may have multiple batches, images only for reference.

CW161009A-56NJ

Part No CW161009A-56NJ
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 56NH 600MA 250MOHM SMD / 56 nH Unshielded Inductor 600 mA 250mOhm Max 0603 (1608 Metric)
Datasheet
CW161009A-56NJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series CW161009A
Package Tape & Reel
Material - Core Ceramic
Inductance 56 nH
Tolerance ±5%
Current Rating (Amps) 600 mA
Shielding Unshielded
DC Resistance (DCR) 250mOhm Max
Q @ Freq 32 @ 200MHz
Frequency - Self Resonant 1.9GHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 200 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.065" L x 0.045" W (1.65mm x 1.15mm)
Height - Seated (Max) 0.043" (1.10mm)
Base Product Number CW161009A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names CW161009A-56NJDKR,CW161009A-56NJTR,CW161009A-56NJCT
Standard Package 3,000
Win Source Part Number 1104334-CW161009A-56NJ
Ultra Librarian 3D Model Ultra Librarian CW161009A-56NJ CAD Model

Description

The CW161009A-56NJ is a fixed inductor manufactured by Bourns Inc.

  • Mounting Type: Surface Mount
  • Package: 0603 (1608 Metric)
  • Inductance: 56 nH
  • Tolerance: ±5%
