Same model may have multiple batches, images only for reference.

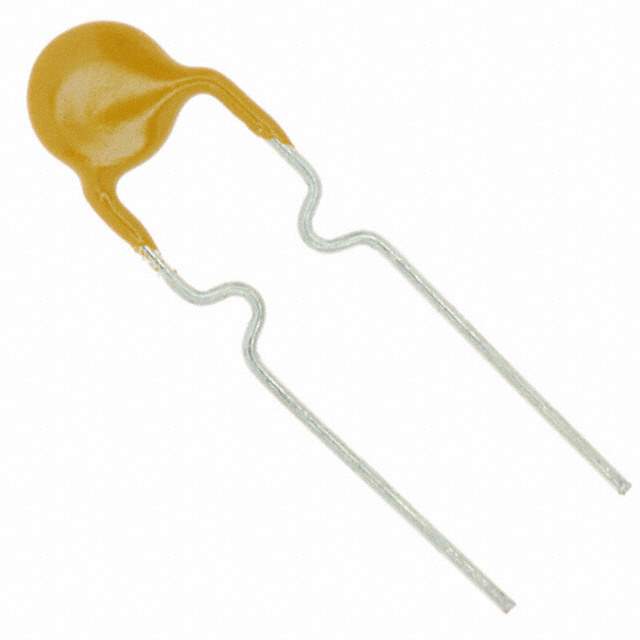

MF-R025-2-99 Real Image
Same model may have multiple batches, images only for reference.

MF-R025-2-99

Part No MF-R025-2-99
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R025-2-99 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Series Multifuse, MF-R
Packaging Reel - TR
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Maximum) 250mA
Current - Trip (It) 500mA
Time to Trip 2.5s
Resistance - Initial (Ri) (Minimum) 1 Ohm
Resistance - Post Trip (R1) (Maximum) 3 Ohm
Operating Temperature Range -40°C ~ 85°C
Mounting Style Through Hole
Package Radial, Disc
Size 0.291" Dia x 0.122" W (7.40mm x 3.10mm)
Height - Seated (Maximum) 0.500" (12.70mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Manufacturer Homepage www.bourns.com
Win Source Part Number 725157-MF-R025-2-99
Popularity Medium
Supply and Demand Status Balance
Family Name MF-R
Introduction Date September 13, 2001
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date End of life (Obsolete)
Ultra Librarian 3D Model Ultra Librarian MF-R025-2-99 CAD Model

Description

The Bourns Inc. MF-R025-2-99 fuse is a polymeric type with a maximum voltage of 60V and a maximum current of 40A.

  • Maximum Voltage: 60V
  • Maximum Current: 40A
  • Current Trip: 500mA
  • Time to Trip: 2.5s
  • Fuse Series: MF-R series
  • Packaging: radial, disc
  • Diameter: 0.291"
  • Lead Spacing: 0.201"
  • Packaging: reel
  • Popularity: medium
  • Supply and Demand Status: balanced
  • Status: obsolete
