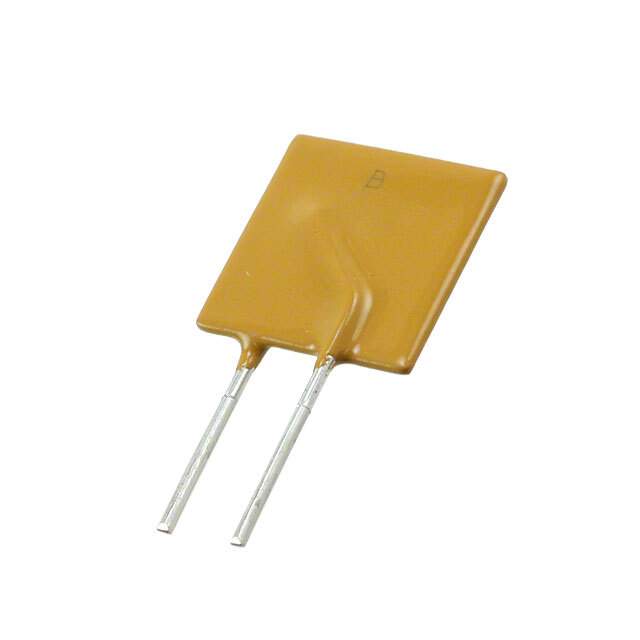

MF-RX160/72-2 Real Image
Same model may have multiple batches, images only for reference.

MF-RX160/72-2

Part No MF-RX160/72-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-RX160/72-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 72V
Current - Max 40A
Current - Hold (Ih) (Max) 1.6A
Current - Trip (It) 3.2A
Time to Trip 11.4s
Resistance - Initial (Ri) (Min) 90 mOhm
Resistance - Post Trip (R1) (Max) 220 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.642" L x 0.122" W (16.30mm x 3.10mm)
Height - Seated (Max) 0.839" (21.30mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 003433-MF-RX160/72-2
Family Name MF-RX/72
Introduction Date October 19, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Automotive
Ultra Librarian 3D Model Ultra Librarian MF-RX160/72-2 CAD Model

Description

The MF-RX160/72-2 is a polymeric type circuit protection from Bourns Inc. with a maximum voltage of 72V and a maximum current of 40A.

  • Height: 0.839” (21.30mm)
  • Dimension: 0.642” L x 0.122” W (16.30mm x 3.10mm)
  • Circuit Protection: Designed for through-hole mounting
  • Material: Halogen-free compliant
  • Current Hold: 1.6A
  • Current Trip: 3.2A
  • Time to Trip: 11.4s
  • Suitable for: Various applications such as automotive
