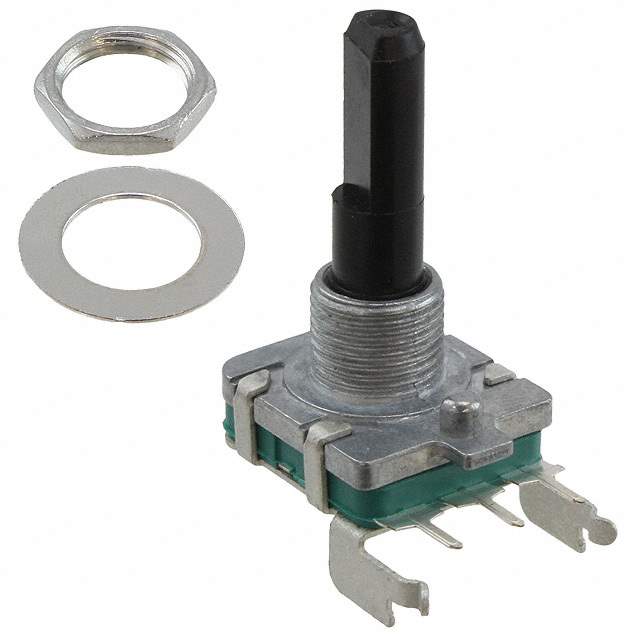

PEC16-2225F-N0024 Real Image
Same model may have multiple batches, images only for reference.

PEC16-2225F-N0024

Part No PEC16-2225F-N0024
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER MECHANICAL 24PPR / Rotary Encoder Mechanical 24 Quadrature (Incremental) Right Angle
Datasheet
PEC16-2225F-N0024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Encoders
Mfr Bourns Inc.
Series PEC16
Package Tray
Encoder Type Mechanical
Output Type Quadrature (Incremental)
Pulses per Revolution 24
Actuator Type 6mm Dia Flatted End
Detent Yes
Built in Switch No
Mounting Type Panel, PCB Through Hole
Orientation Right Angle
Termination Style PC Pin
Rotational Life (Cycles Min) 100K
Base Product Number PEC16
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Other Names PEC162225FN0024
Standard Package 50
Win Source Part Number 997229-PEC16-2225F-N0024
Ultra Librarian 3D Model Ultra Librarian PEC16-2225F-N0024 CAD Model

Description

The Bourns Inc. PEC16-2225F-N0024 is an encoder with a PEC16 series.

  • Termination Style: PC Pin
  • Package: Tray
  • Output Type: Quadrature (Incremental)
  • Actuator Type: 6mm Dia Flatted End
  • Encoder Type: Mechanical
  • Pulses per Revolution: 24
  • Mounting: Panel and PCB Through-Hole
