Same model may have multiple batches, images only for reference.

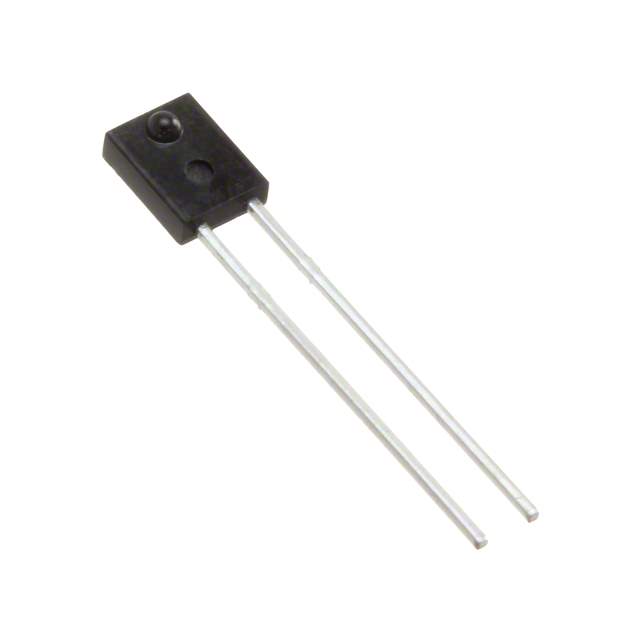

SDP8276-001 Real Image
Same model may have multiple batches, images only for reference.

SDP8276-001

Part No SDP8276-001
Manufacturer Honeywell
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE SILICON SIDE LOOK / Photodiode 50ns 50°
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photodiodes
Mfr Honeywell Sensing and Productivity Solutions
Package Bulk
Product Status Obsolete
Response Time 50ns
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Dark (Typ) 50nA
Viewing Angle 50°
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.1050
Other Names 2266-SDP8276-001,480-6875
Standard Package 100
Win Source Part Number 1055913-SDP8276-001
Ultra Librarian 3D Model Ultra Librarian SDP8276-001 CAD Model

Description

The Honeywell Sensing and Productivity Solutions 1055913-SDP8276-001 is a sensor that falls under the category of Optical Sensors - Photodiodes.

  • Response Time: 50ns
  • Standard Package: 100
  • Voltage - DC Reverse (Vr) (Max): 50 V
  • Viewing Angle: 50°
  • Operating Temperature Range: -40°C ~ 85°C
