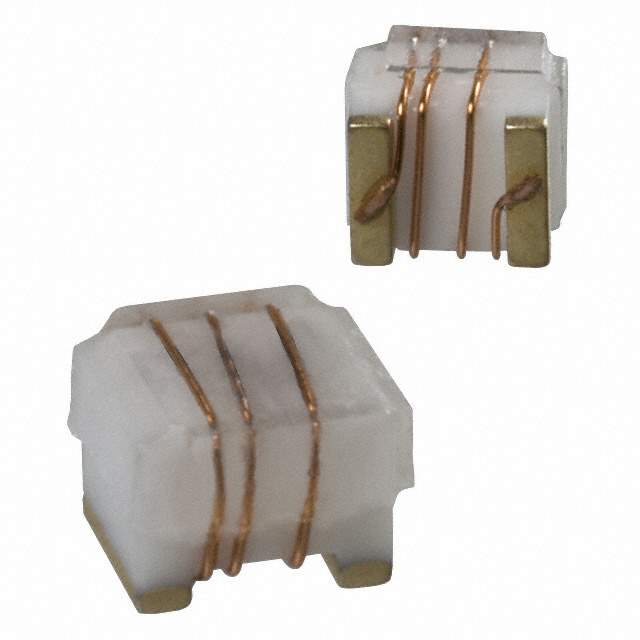

The PM1008-4R7K-RC is a wire-wound chip inductor manufactured by Bourns Inc. It's designed for use in a variety of electronic circuits, particularly in RF and high-frequency applications. The “4R7K” designation indicates an inductance value of 4.7 µH (microhenries) with a tolerance that is implied through other parts of the code. Chip inductors like this one are utilized for filtering, impedance matching, and tuning circuits.

Applications

• RF circuits
• Wireless communication devices
• Oscillators
• Filters
• Impedance matching networks

Features

• Wire-wound construction
• High Q value
• High self-resonant frequency
• Surface mount design
• Small 1008 package size

Benefits

• Provides stable inductance value in high-frequency circuits
• Offers excellent performance in RF applications
• Easy to integrate into automated assembly processes
• Reduces board space requirements due to its small size
• Suitable for various RF designs

Additional Details

The PM1008-4R7K-RC inductor conforms to the 1008 EIA standard size. This means it has a length of 0.1 inches (2.54 mm) and a width of 0.08 inches (2.03 mm). The wire-wound construction provides a high Q value, which is a measure of the inductor's efficiency. The high self-resonant frequency (SRF) indicates the frequency at which the inductor's performance starts to degrade. This inductor is suitable for reflow soldering processes. The 'RC' likely refers to the packaging type (e.g., tape and reel). Its small size makes it ideal for use in portable devices and other space-constrained applications. The Bourns PM1008 series is known for its reliable performance and consistent quality. Typically these are used to filter unwanted frequencies, and in LC resonant circuits. These components are generally RoHS compliant indicating that they are lead-free components suitable for modern environmentally conscious designs.
