Same model may have multiple batches, images only for reference.

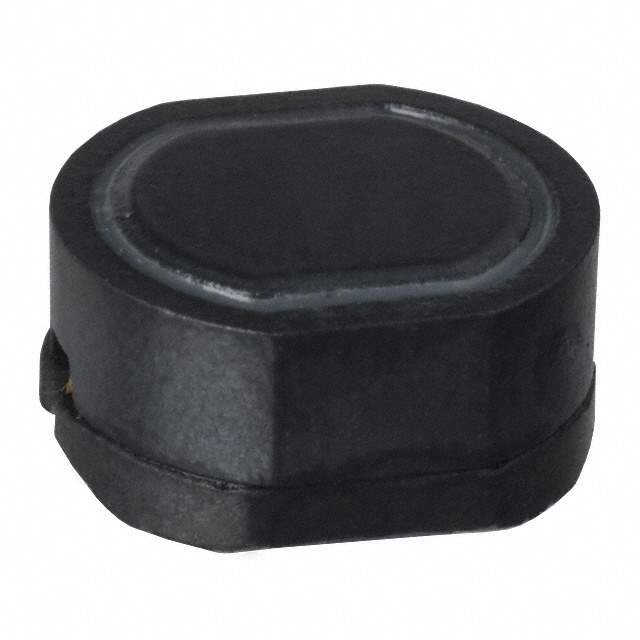

PM105SB-100M-RC Real Image
Same model may have multiple batches, images only for reference.

PM105SB-100M-RC

Part No PM105SB-100M-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 2.1A 60 MOHM SMD / Inductor Power Shielded Bobbin Core 10uH 20% 100KHz 39Q-Factor Ferrite 2.1A 0.06Ohm DCR T/R
Datasheet
PM105SB-100M-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series PM105SB
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating 2.1A
Shielding Shielded
DC Resistance (DCR) 60 mOhm Max
Q @ Freq 39 @ 2.52MHz
Frequency - Self Resonant 29MHz
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.390" L x 0.390" W (9.90mm x 9.90mm)
Height - Seated (Maximum) 0.189" (4.80mm)
Win Source Part Number 792408-PM105SB-100M-RC
Popularity Medium
Supply and Demand Status Limited
Family Name PM105SB
Introduction Date February 02, 2007
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PM105SB-100M-RC CAD Model

Description

The PM105SB-100M-RC wirewound inductor is manufactured by Bourns Inc.

  • Core Material: Shielded
  • Current Rating: 2.1A
  • Applications: Power supply and filtering
  • Mounting: Surface Mount
  • Inductance: 10µH
  • Tolerance: ±20%
  • Temperature Range: -40°C to 125°C
  • Series: PM105SB
  • Category: Inductors, Coils, and Chokes
  • Dimensions: 0.390" L x 0.390" W (9.90mm x 9.90mm)
  • Height-Seated Maximum: 0.189" (4.80mm)
  • Alternative Parts: 3621E100MT, SDR1006LTEB100M, SDR1006TTEB100M, 3621L100MT
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
