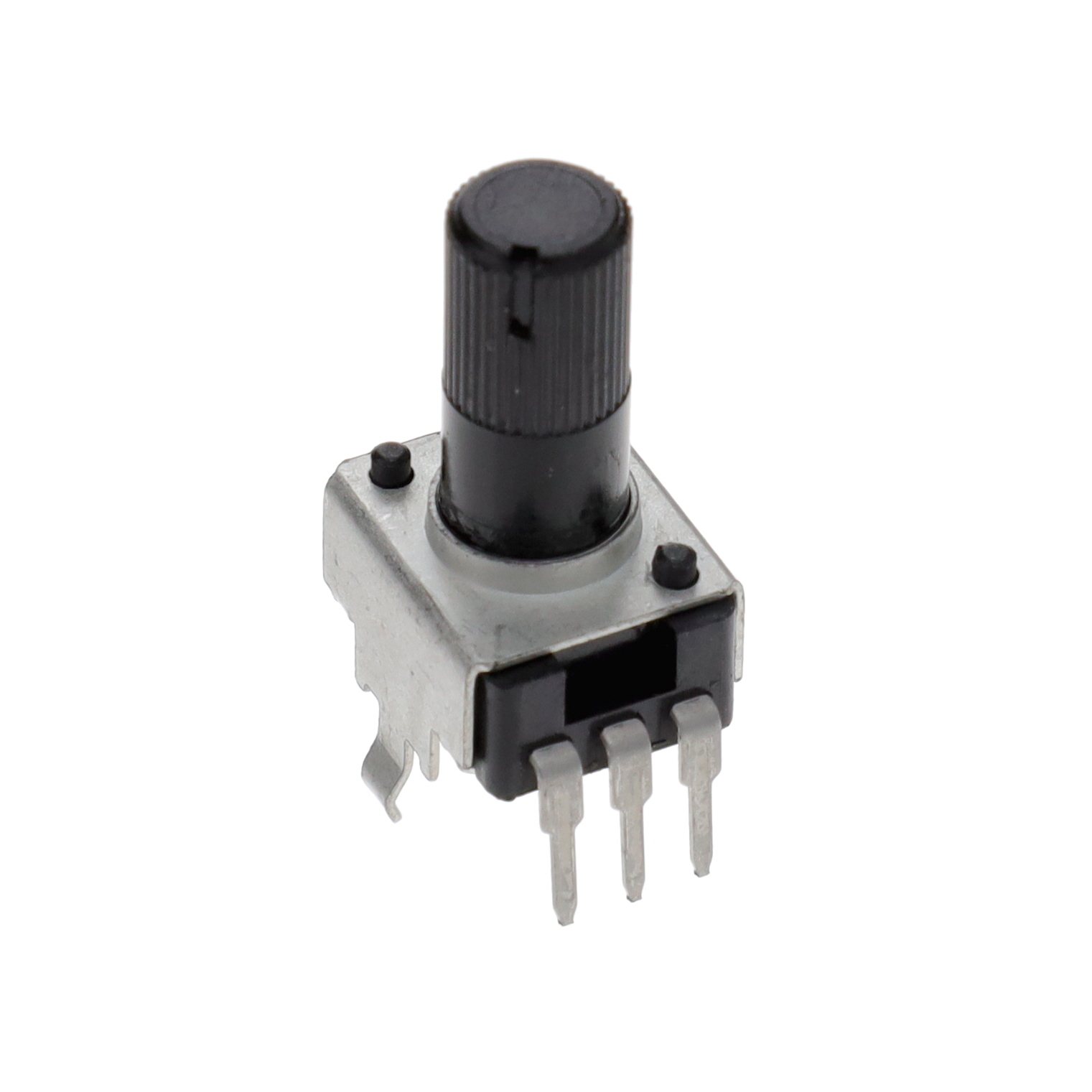

Same model may have multiple batches, images only for reference.
PTV09A-4020S-B105 Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PTV09A-4020S-B105

Part No PTV09A-4020S-B105
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats
Description POT 1M OHM 1/20W CARBON LINEAR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance (Ohms) 1M
Tolerance ±20%
Power (Watts) 0.05W, 1/20W
Built in Switch None
Number of Turns 1.0
Taper Linear
Number of Gangs 1
Adjustment Type Top Adjustment
Rotation 280°
Resistive Material Carbon
Termination Style PC Pins, Board Locks
Actuator Type Knurled and Slotted
Actuator Length 0.787" (20.00mm)
Actuator Diameter 0.236" (6.00mm)
Mounting Type Through Hole, Snap In
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1574344-PTV09A-4020S-B105
Ultra Librarian 3D Model Ultra Librarian PTV09A-4020S-B105 CAD Model
