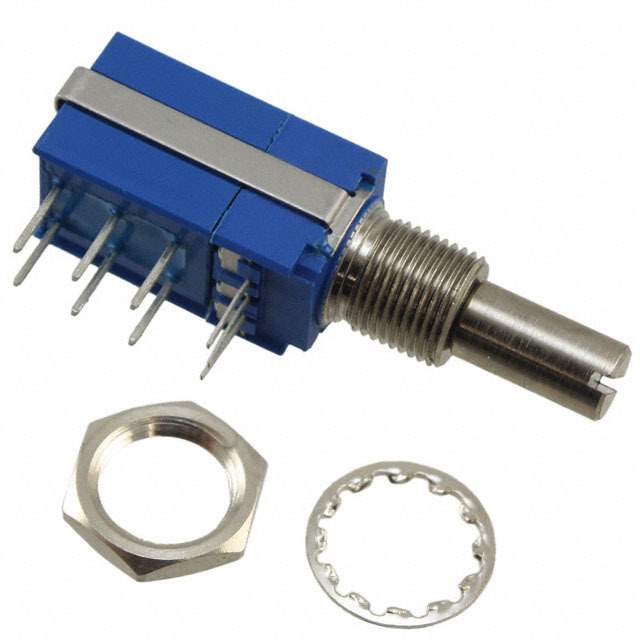

54AAD-B28-B15/P50L Real Image
Same model may have multiple batches, images only for reference.

54AAD-B28-B15/P50L

Part No 54AAD-B28-B15/P50L
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats
Description Panel Control w/Push-Pull Switch | POT 10K OHM 1/2W PLASTIC LINEAR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Tray
Resistance (Ohms) 10k
Tolerance ±20%
Power (W) 0.5W, 1/2W
Built in Switch Push-Pull, DPDT
Number of Turns 1
Taper Linear
Number of Gangs 1
Adjustment Type Side Adjustment
Temperature Coefficient ±1000ppm/°C
Rotation 290°
Resistive Material Conductive Plastic
Termination Style PC Pins
Actuator Type Slotted
Actuator Length 0.875" (22.23mm)
Actuator Diameter 0.250" (6.35mm)
Bushing Thread 3/8-32
Mounting Style Panel Mount
Size - Body Rectangular - 0.521" x 0.492" Face x 0.521" H (13.24mm x 12.50mm x 13.24mm) + Switch
Family Part Number 54AAD
Manufacturer Pack Quantity 45
MSL Level 1 (Unlimited)
Win Source Part Number 1129197-54AAD-B28-B15/P50L
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 54AAD-B28-B15/P50L CAD Model

Description

Bourns Inc. presents 54AAD-B28-B15/P50L, a panel mount potentiometer with PC pins termination style.

  • Actuator Type: Slotted
  • Taper: Linear
  • Number of gangs: 1
  • Resistance: 10k ohms
  • Power: 1/2W
  • Temperature Coefficient: ±1000ppm/°C
  • Tolerance: ±20%
  • Dimension: 0.521" x 0.492" Face x 0.521" H (13.24mm x 12.50mm x 13.24mm) + Switch
