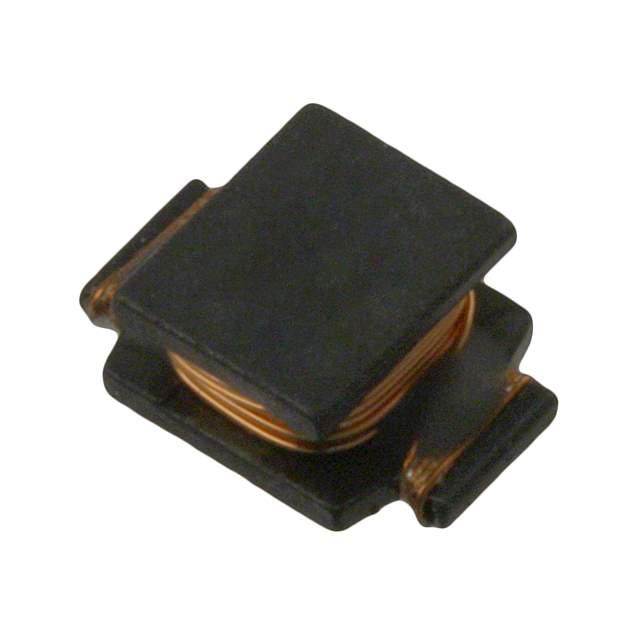

Same model may have multiple batches, images only for reference.

SDR0703-271KL

Name: SDR0703-271KL
Brand: Bourns Inc.
SKU: 1274738
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SDR0703-271KL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SDR0703-271KL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SDR0703
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	270 µH
Tolerance	±10%
Current Rating (Amps)	170 mA
Current - Saturation (Isat)	220mA
Shielding	Unshielded
DC Resistance (DCR)	3.6Ohm Max
Q @ Freq	30 @ 796kHz
Frequency - Self Resonant	7MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.256" L x 0.177" W (6.50mm x 4.50mm)
Height - Seated (Max)	0.106" (2.70mm)
Base Product Number	SDR0703
Other Names	-SDR0703-271KLCT,SDR0703271KL,-SDR0703-271KL,-SDR0703-271KLTR,SDR0703-271KLTR,SDR0703-271KLCT,-SDR0703-271KL,SDR0703-271KL
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274738-SDR0703-271KL
Ultra Librarian 3D Model	Ultra Librarian SDR0703-271KL CAD Model

Alternative Products

Description

The SDR0703 series of inductors from Bourns Inc. are drum core, wirewound inductors designed for use in a variety of applications.

Shielding: Unshielded
Core Material: Ferrite
Inductance: 270 µH
Tolerance: ±10%
DC Resistance (DCR): 3.6Ohm Max
Current Rating: 170mA
Height Seated: 0.106" (2.70mm)
Dimension: 0.256" L x 0.177" W (6.50mm x 4.50mm)
Frequency Self-Resonant: 7MHz
Q @ Freq: 30 @ 796kHz
Package/Case: Nonstandard
Mounting: SMD (SMT)
Temperature Range: -40°C ~ 125°C
