3590S-2-203L

Part No 3590S-2-203L
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats

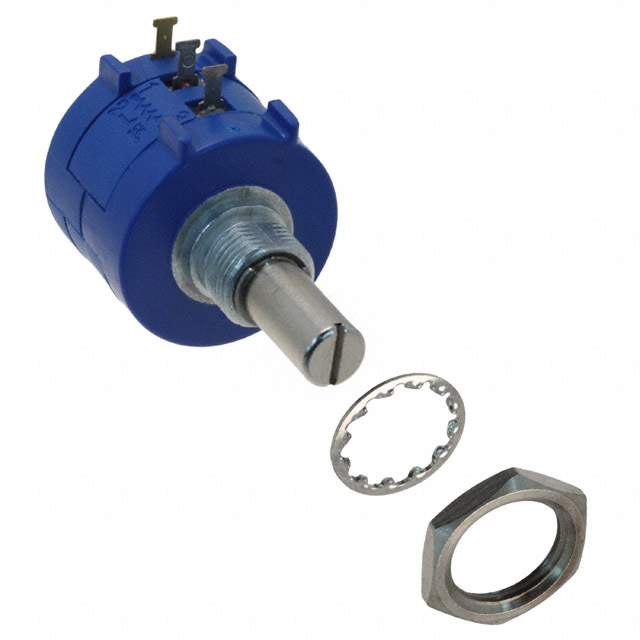

Description Res Wirewound POT 20K Ohm 5% 2W 10(Elec)/10(Mech)Turn 6.34mm (39.22 X 22.23 X 26.66mm) Solder Lug Panel Mount / POT 20K OHM 2W WIREWOUND LINEAR
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Taper Linear
Resistance (Ohms) 20k
Tolerance ±5%
Number of Gangs 1
Built in Switch None
Power (Watts) 2W
Temperature Coefficient ±50ppm/°C
Number of Turns 10
Rotation 3600°
Adjustment Type User Defined
Resistive Material Wirewound
Termination Style Solder Lug
Actuator Type Slotted
Actuator Length 0.812" (20.63mm)
Actuator Diameter 0.2497" (6.34mm)
Bushing Thread 3/8-32
Mounting Panel Mount
Win Source Part Number 1005210-3590S-2-203L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name 3590
Introduction Date October 15, 1997
ECCN EAR99
Country of Origin India, Mexico
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 3590S-2-203L CAD Model

Description

3590S-2-203L from Bourns Inc. is a rotary potentiometer in the Rotary Potentiometers, Rheostats category, commonly considered for precision manual adjustment in instrumentation, calibration panels, industrial controls, test equipment, and laboratory electronics. Engineers typically select parts in this family when a stable, panel-mount variable resistance element is needed for tuning, set-point adjustment, or operator interface control. Because this component comes from an established manufacturer, it is often evaluated for use in professional and long-service designs where mechanical reliability and repeatable adjustment matter. The current lifecycle status for 3590S-2-203L is information not available, so design teams should confirm availability and long-term support directly with Bourns Inc. or authorized distributors before committing to new production. RoHS compliance information is also not available in the provided data. For compliance-sensitive programs, engineers and procurement teams should verify the latest datasheet, material declaration, and manufacturer compliance statements before sourcing.
