Same model may have multiple batches, images only for reference.

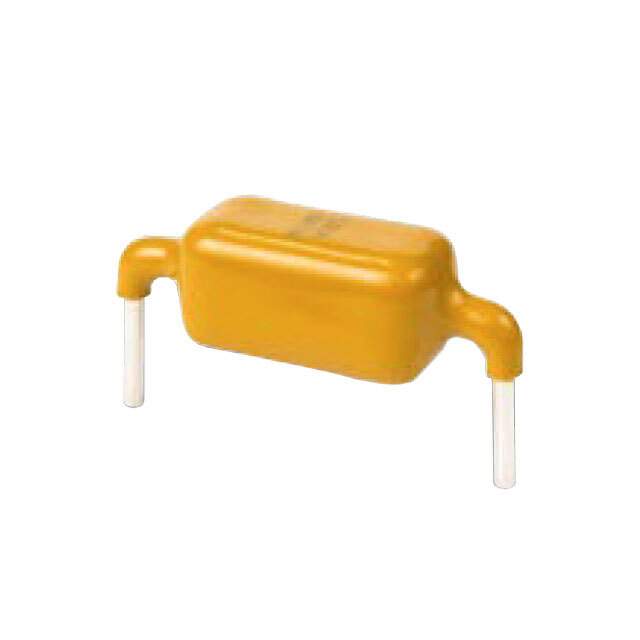

PTVS1-190C-TH Real Image
Same model may have multiple batches, images only for reference.

PTVS1-190C-TH

Part No PTVS1-190C-TH
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 190VWM 227VC AXIAL  /  227V (Typ) Clamp 1000A (1kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
Datasheet
PTVS1-190C-TH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Bourns Inc.
Package Tray
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 190V
Voltage - Breakdown (Min) 200V
Voltage - Clamping (Max) @ Ipp 227V (Typ)
Current - Peak Pulse (10/1000µs) 1000A (1kA) (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 274pF @ 10kHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Through Hole
Package / Case Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package Axial
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 118-PTVS1-190C-TH
Standard Package 5
Win Source Part Number 986034-PTVS1-190C-TH
Ultra Librarian 3D Model Ultra Librarian PTVS1-190C-TH CAD Model

Description

The PTVS1-190C-TH is a bidirectional channel Zener diode manufactured by Bourns Inc.

  • Manufacturer: Bourns Inc.
  • Product: PTVS1-190C-TH
  • Channel Type: Bidirectional
  • Application: Overvoltage Transient Protection, General Purpose
  • Package Quantity: 5
  • Capacitance: 274pF @ 10kHz
  • Reverse Standoff Voltage: 190V
  • Breakdown Voltage: 200V
  • Clamping Voltage: 227V (Typical) @ Ipp
  • Win Source Part Number: 986034-PTVS1-190C-TH
  • Package: Axial, Right-Angle Bend (24.15mm Center)
