Same model may have multiple batches, images only for reference.

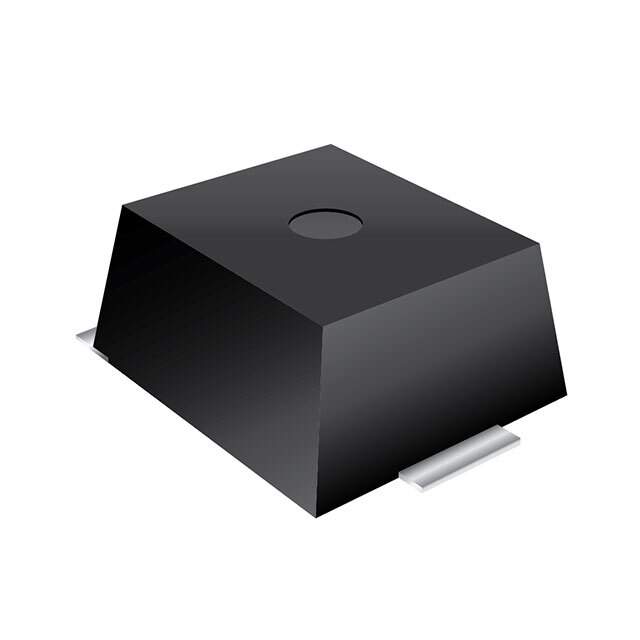

PTVS10-086C-M Real Image
Same model may have multiple batches, images only for reference.

PTVS10-086C-M

Part No PTVS10-086C-M
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 2SMD
Datasheet
PTVS10-086C-M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 15 Weeks
Features 157V Clamp 10000A (10kA) (8/20µs) Ipp Tvs Diode Surface Mount 2-SMD
Manufacturer Bourns Inc.
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C (TJ)
Mounting Surface Mount
Package 2-SMD, Flat Lead
Case / Package 2-SMD
Family Name PTVS10
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number PTVS10-086C-MCT, PTVS10-086C-MTR, PTVS10-086C-MDKR
Quantity per package 400
Popularity High
Supply and Demand Status Limited
Win Source Part Number 890449-PTVS10-086C-M
Ultra Librarian 3D Model Ultra Librarian PTVS10-086C-M CAD Model

Description

The Bourns Inc. 890449-PTVS10-086C-M is a surface-mountable TVS diode with a 157V clamp and a 10kA (8/20µs) Ipp. The diode is rated for an operating temperature range of -55°C to 125°C (TJ) and is packaged in a 2-SMD, flat-lead package.

  • Series: PTVS10
  • Design: Circuit Protection
  • Production Lead Time: 15 weeks (estimated)
  • REACH: Affected
  • HTSUS Code: 8541.10.0080
  • Manufacturer: Bourns Inc.
