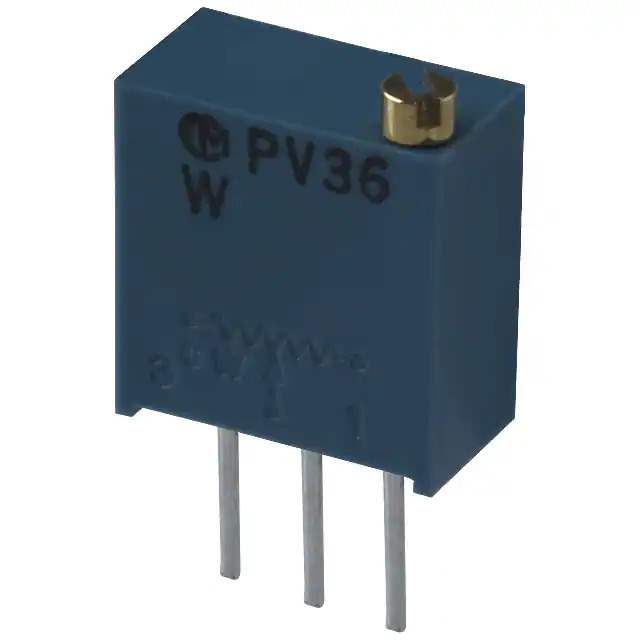

PV36W203C01B00 Real Image
Same model may have multiple batches, images only for reference.

PV36W203C01B00

Part No PV36W203C01B00
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 20K OHM 0.5W PC PIN TOP
Datasheet
PV36W203C01B00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series PV36
Package Bulk
Product Status Active
Resistance 20 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm)
Base Product Number PV36W
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 846592-PV36W203C01B00
Ultra Librarian 3D Model Ultra Librarian PV36W203C01B00 CAD Model

Description

The 846592-PV36W203C01B00 is a high-quality potentiometer manufactured by Bourns Inc.

  • Series: PV36
  • Resistance: 20 kOhms
  • Size Dimension: 0.378" x 0.197" Face
  • Power Rating: 0.5W
  • Tolerance: ±10%
  • Adjustment: Top
  • Termination: PC Pins
  • Resistive Material: Cermet
  • Temperature Coefficient: ±100ppm/°C
  • Mounting: Through-Hole
  • Standard Package: 100 pcs
  • REACH: Affected
  • California Prop 65: Warning Information
