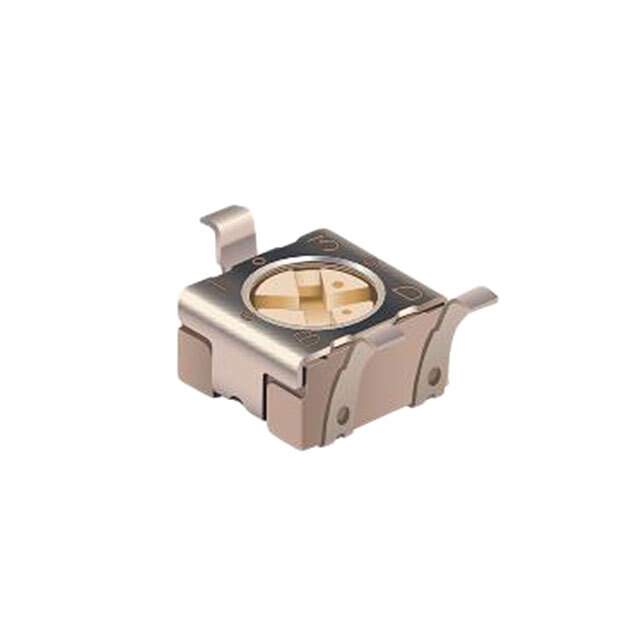

PVG3K501C01R00 Real Image
Same model may have multiple batches, images only for reference.

PVG3K501C01R00

Part No PVG3K501C01R00
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER - SMD 3MM SQ ST CERMET K / 500 Ohms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Bottom Adjustment
Datasheet
PVG3K501C01R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Bourns Inc.
Series PVG3
Package Tape & Reel (TR)
Resistance 500 Ohms
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±150ppm/°C
Number of Turns 1
Adjustment Type Bottom Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style Gull Wing
Dimension Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8050
Other Names 118-PVG3K501C01R00TR
Standard Package 500
Win Source Part Number 1114103-PVG3K501C01R00
Ultra Librarian 3D Model Ultra Librarian PVG3K501C01R00 CAD Model

Description

The Bourns Inc. PVG3K501C01R00 trimmer potentiometer is a cermet resistive material that has a resistance of 500 Ohms.

  • Resistive Material: Cermet
  • Resistance: 500 Ohms
  • Tolerance: ±20%
  • Temperature Coefficient: ±150ppm/°C
  • Power Rating: 0.25W or 1/4W
  • Adjustment Type: Bottom
  • Turns: 1
  • Shape: Rectangular
  • Dimension: 0.142" x 0.134" face (3.60mm x 3.40mm)
  • Mounting: Tape & reel (TR)
  • Standard Package: 500
