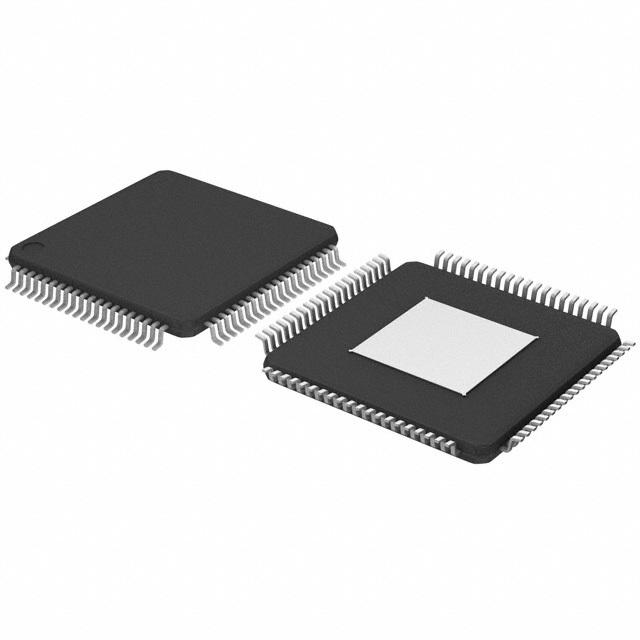

Same model may have multiple batches, images only for reference.
DAC1403D160HW/C1,5 IDT, Integrated Device Technology Inc
Same model may have multiple batches, images only for reference.

DAC1403D160HW/C1,5

Part No DAC1403D160HW/C1,5
Manufacturer IDT, Integrated Device Technology Inc
Catalog Data Acquisition - Digital to Analog Converters (DAC)
Description IC DAC 14BIT 160MSPS 80-HTQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer IDT, Integrated Device Technology Inc
Packaging Reel - TR
Status Active
Number of Bits 14
Number of D/A Converters 2
Settling Time 43ns (Typ)
Output Type Current - Unbuffered
Differential Output Yes
Data Interface Parallel
Reference Type Internal
Analog Supply Voltage 3 V to 3.6 V
Digital Supply Voltage 3 V to 3.6 V
INL/DNL (LSB) ±2.9, ±1.5
Temperature Range - Operating -40°C to 85°C
Case / Package 80-HTQFP (12x12)
Win Source Part Number 133510-DAC1403D160HW/C1,5
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DAC1403D160HW/C1,5 CAD Model

Description

Features and Benefits

  • 14-bit dual-channel design.
  • 160 MSPS sample rate.
  • Adjustable full-scale output current.

The DAC1403D160HW/C1,5 offers ultra-fast performance with a dual-channel 14-bit architecture, supporting a 160 MSPS sample rate. Its adjustable output current allows tailored configurations for different applications.

Applications

  • High-definition video processing.
  • Complex waveform generation.
  • High-speed data acquisition.

Meant for high-bandwidth and demanding applications, this DAC offers superior performance where precision and speed are prioritized.
