Same model may have multiple batches, images only for reference.

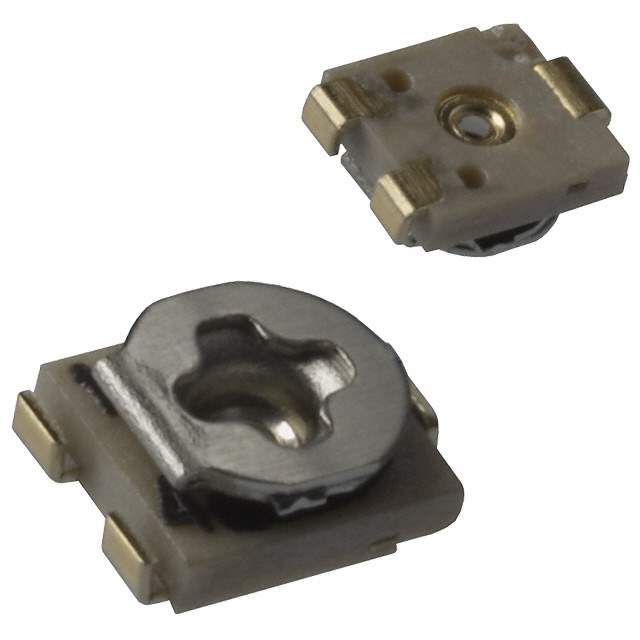

PVZ2A501A01R00 Real Image
Same model may have multiple batches, images only for reference.

PVZ2A501A01R00

Part No PVZ2A501A01R00
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description Res Carbon Film Trimmer 500 Ohm 30% 0.1W(1/10W) 1(Elec)/1(Mech)Turn (2.1 X 2.7 X 2mm) J-Hook SMD T/R / TRIMMER 500 OHM 0.1W SMD
Datasheet
PVZ2A501A01R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Cut Reel
Status Obsolete(EOL)
Resistance (Ohms) 500
Power (Watts) 0.1W, 1/10W
Tolerance ±30%
Temperature Coefficient ±500ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Carbon
Mounting SMD (SMT)
Termination Style Gull Wing, 90° Bend
Dimension Square - 0.087" x 0.083" Face x 0.035" H (2.20mm x 2.10mm x 0.90mm)
Win Source Part Number 097609-PVZ2A501A01R00
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name PVZ2
Introduction Date June 20, 2004
ECCN EAR99
Country of Origin China
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PVZ2A501A01R00 CAD Model

Description

The Bourns Inc. PVZ2A501A01R00 is a potentiometer variable resistor designed for use in various applications.

  • Power Rating: 0.1W (1/10W)
  • Resistance: 500 Ohms
  • Tolerance: ±30%
  • Temperature Coefficient: ±500ppm/°C
  • Mounting: SMD (SMT)
  • Termination Style: gull wing, 90° bend
  • Dimensions: Square - 0.087" x 0.083" Face x 0.035" H (2.20mm x 2.10mm x 0.90mm)
  • Status: obsolete (EOL)
  • Note: alternative parts cross-reference
