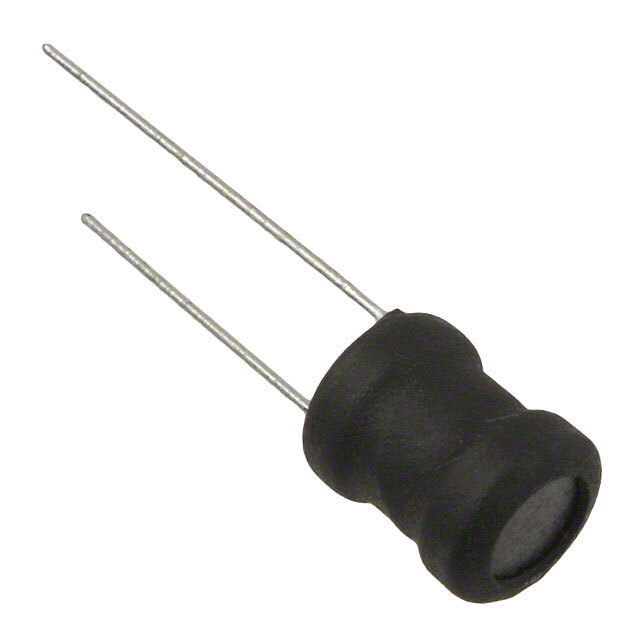

Same model may have multiple batches, images only for reference.
RLB1314-220KL Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

RLB1314-220KL

Part No RLB1314-220KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 2.2A 26 MOHM TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±10%
Current Rating (Amps) 2.2 A
Shielding Unshielded
DC Resistance (DCR) 26mOhm Max
Q @ Freq 110 @ 2.52MHz
Frequency - Self Resonant 14MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Case / Package Radial, Vertical Cylinder
Size / Dimension 0.461" Dia (11.70mm)
Height - Seated (Max) 0.512\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1533136-RLB1314-220KL
Ultra Librarian 3D Model Ultra Librarian RLB1314-220KL CAD Model
