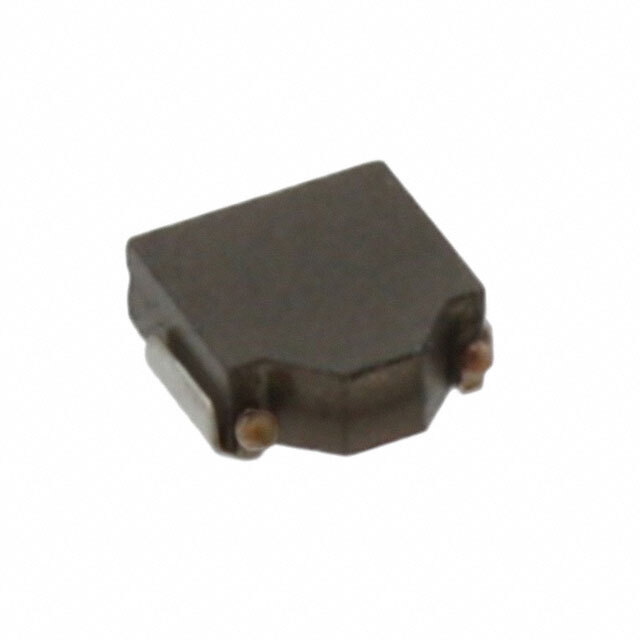

SDR0302-471KL

Part No SDR0302-471KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 470UH 105MA 14.3OHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 µH
Tolerance ±10%
Current Rating (Amps) 105 mA
Current - Saturation (Isat) 130mA
Shielding Unshielded
DC Resistance (DCR) 14.3Ohm Max
Q @ Freq 42 @ 796kHz
Frequency - Self Resonant 5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Case / Package Nonstandard
Size / Dimension 0.118" L x 0.110" W (3.00mm x 2.80mm)
Height - Seated (Max) 0.110\
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1533203-SDR0302-471KL
Ultra Librarian 3D Model Ultra Librarian SDR0302-471KL CAD Model
