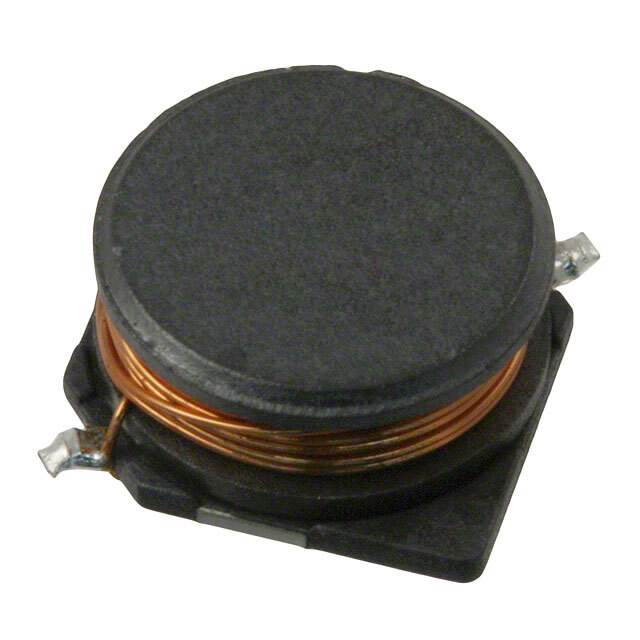

SDR1045-100M Real Image
Same model may have multiple batches, images only for reference.

SDR1045-100M

Part No SDR1045-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 3.2A 64 MOHM SMD / 10 µH Unshielded Drum Core, Wirewound Inductor 3.2 A 64mOhm Max Nonstandard
Datasheet
SDR1045-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1045
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 3.2 A
Current - Saturation (Isat) 3.6A
Shielding Unshielded
DC Resistance (DCR) 64mOhm Max
Q @ Freq 26 @ 2.52MHz
Frequency - Self Resonant 27.8MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDR1045
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SDR1045-100MCT,SDR1045-100MDKR,SDR1045-100MTR,SDR1045-100M-ND
Standard Package 700
Win Source Part Number 1011967-SDR1045-100M
Ultra Librarian 3D Model Ultra Librarian SDR1045-100M CAD Model

Description

Bourns Inc. presents a 1011967-SDR1045-100M fixed inductor, which is a drum core, wirewound type.

  • Type: drum core, wirewound
  • Mounting: SMD technology
  • Packaging: tape & reel
  • Shielding: unshielded
  • Inductance: 10 µH
  • Tolerance: ±20%
  • DC Resistance: 64mOhm Max
  • Q @ Freq: 26 @ 2.52MHz
  • Self-Resonant Frequency: 27.8MHz
  • Dimension: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Current Rating: 3.2 A
  • Frequency Test: 100 kHz
  • Temperature Range: -40°C ~ 125°C
  • REACH: unaffected
