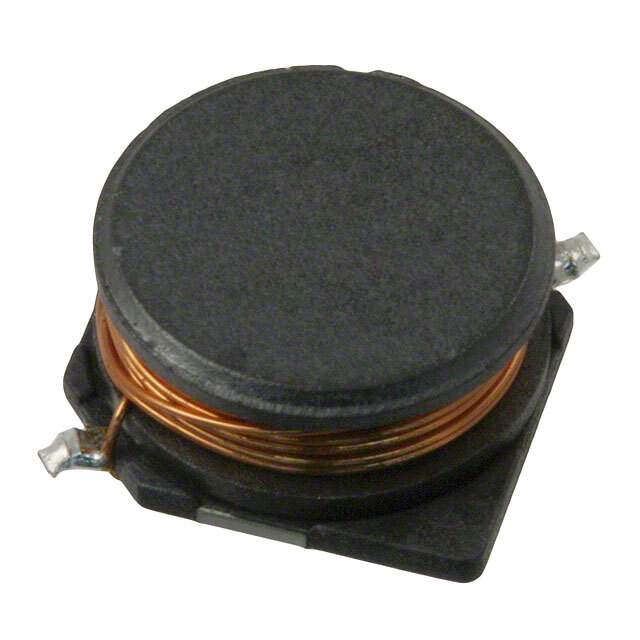

SDR1045-220M Real Image
Same model may have multiple batches, images only for reference.

SDR1045-220M

Part No SDR1045-220M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 2.2A 145 MOHM SMD / 22 µH Unshielded Drum Core, Wirewound Inductor 2.2 A 145mOhm Max Nonstandard
Datasheet
SDR1045-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1045
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 2.2 A
Current - Saturation (Isat) 2.6A
Shielding Unshielded
DC Resistance (DCR) 145mOhm Max
Q @ Freq 22 @ 2.52MHz
Frequency - Self Resonant 19.4MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDR1045
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 700
Win Source Part Number 1196948-SDR1045-220M
Ultra Librarian 3D Model Ultra Librarian SDR1045-220M CAD Model

Description

The SDR1045 fixed inductor is a wirewound, drum core type with an inductance of 22 µH from Bourns Inc.

  • Inductance: 22 µH
  • Tolerance: ±20%
  • Q: 22 @ 2.52MHz
  • Mounting Technology: SMT
  • Packaging: Tape and Reel
  • Package/Case: Non-Standard
  • Height (Seated): 0.189" (4.80mm)
  • Temperature Range: -40°C to 125°C
  • Series: SDR1045
  • DC Resistance: 145mOhm Max
