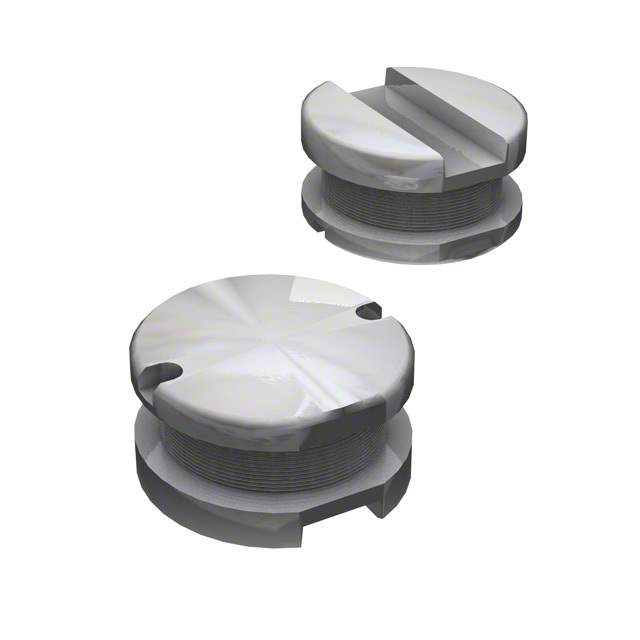

Same model may have multiple batches, images only for reference.

SDR1307-151KL

Name: SDR1307-151KL
Brand: Bourns Inc.
SKU: 1155622
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SDR1307-151KL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 150UH 1.6A 250MOHM SMD / 150 µH Unshielded Drum Core, Wirewound Inductor 1.6 A 250mOhm Max Nonstandard
Datasheet	SDR1307-151KL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SDR1307
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	150 µH
Tolerance	±10%
Current Rating (Amps)	1.6 A
Current - Saturation (Isat)	2.6A
Shielding	Unshielded
DC Resistance (DCR)	250mOhm Max
Q @ Freq	20 @ 796kHz
Frequency - Self Resonant	4.5MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max)	0.287" (7.30mm)
Base Product Number	SDR1307
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SDR1307151KL,SDR1307-151KLTR,SDR1307-151KL-ND,SDR1307-151KLCT,SDR1307-151KLDKR
Standard Package	400
Win Source Part Number	1155622-SDR1307-151KL
Ultra Librarian 3D Model	Ultra Librarian SDR1307-151KL CAD Model

Alternative Products

Description

The SDR1307-151KL is a drum core, wirewound inductor from Bourns Inc. that is designed to be used in various electronic applications.

Shielding: Unshielded
Inductance: 150 µH
Tolerance: ±10%
Maximum Height (Seated): 0.287 inches (7.30mm)
Packaging: Tape and Reel
Standard Package: 400
DC Resistance (DCR) Max: 250mOhm max
Q @ Freq: 20 @ 796kHz
Frequency Self-Resonant: 4.5MHz
Operating Temperature Range: -40°C to 125°C
Dimensions: 0.512 inches L x 0.512 inches W (13.00mm x 13.00mm)
Core Material: Ferrite

The SDR1307-151KL is an ideal choice for applications that require a ferrite core.
