Same model may have multiple batches, images only for reference.

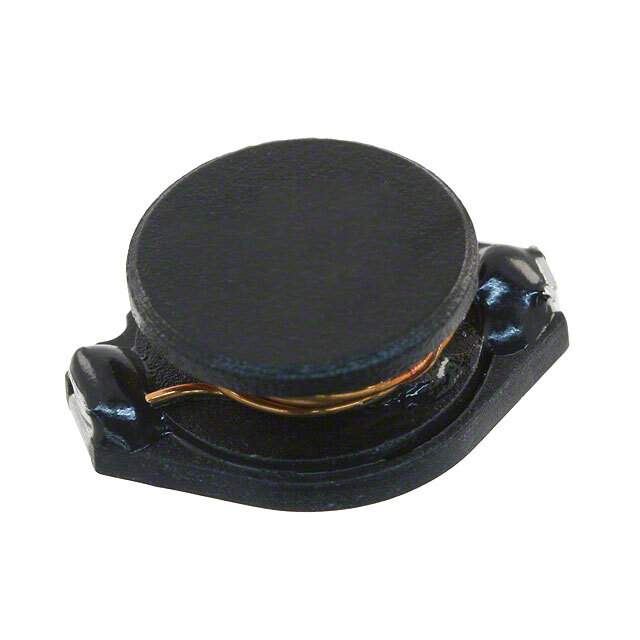

SDR1806-331KL Real Image
Same model may have multiple batches, images only for reference.

SDR1806-331KL

Part No SDR1806-331KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 330UH 1A 580 MOHM SMD / 330 µH Unshielded Drum Core, Wirewound Inductor 1 A 580mOhm Max Nonstandard
Datasheet
SDR1806-331KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1806
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 330 µH
Tolerance ±10%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1.8A
Shielding Unshielded
DC Resistance (DCR) 580mOhm Max
Q @ Freq 18 @ 796kHz
Frequency - Self Resonant 3.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max) 0.272" (6.90mm)
Base Product Number SDR1806
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SDR1806-331KL-ND,SDR1806-331KLTR,-SDR1806-331KL-ND,-SDR1806-331KLTR,-SDR1806-331KLCT,SDR1806331KL,SDR1806-331KLCT,-SDR1806-331KL
Standard Package 250
Win Source Part Number 1004848-SDR1806-331KL
Ultra Librarian 3D Model Ultra Librarian SDR1806-331KL CAD Model

Description

The SDR1806-331KL from Bourns Inc. is a drum core, wirewound inductor with a ferrite core material.

  • Shielding: Unshielded
  • Tolerance: ±10%
  • Standard Package: 250
  • Height: 0.272 inches (6.90mm) when seated
  • Inductance: 330 µH
  • Q @ Freq: 18 @ 796kHz
  • Current Rating: 1A
  • DC Resistance (DCR): 580mOhm Max
  • Frequency of Self-Resonant: 3.5MHz
  • AEC-Q200 Rated: Yes
  • Operating Temperature: -40°C to 125°C
  • Mounting: SMD (SMT)
