Same model may have multiple batches, images only for reference.

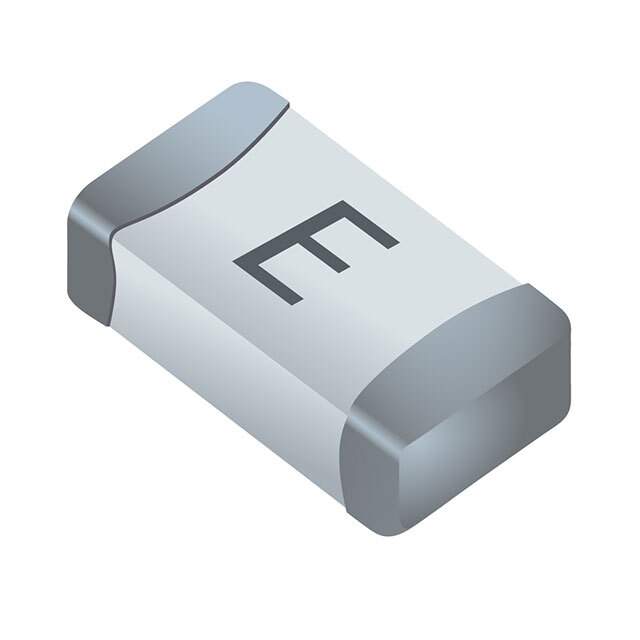

SF-1206HI450M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206HI450M-2

Part No SF-1206HI450M-2
Manufacturer Bourns Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 4.5A 32VDC 1206 / 4.5 A AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Datasheet
SF-1206HI450M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206HIxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 4.5 A
Voltage Rating - DC 32 V
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 3.2
Approval Agency UL
Temperature Range - Operating -55°C ~ 150°C
Dimension 0.126" L x 0.063" W x 0.038" H (3.20mm x 1.60mm x 0.97mm)
DC Cold Resistance 0.021 Ohms
Base Product Number SF-1206
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names SF-1206HI450M-2CT,SF-1206HI450M-2DKR,SF-1206HI450M-2TR
Standard Package 3,000
Win Source Part Number 1038706-SF-1206HI450M-2
Ultra Librarian 3D Model Ultra Librarian SF-1206HI450M-2 CAD Model

Description

The SF-1206HIxxxM is a board mount (cartridge style excluded) fuse.

  • Manufacturer: Bourns Inc.
  • Series: SinglFuse™
  • Mounting Style: Board Mount (Cartridge Style Excluded)
  • Voltage Rating: 32 V
  • Current Rating: 4.5 A
  • Breaking Capacity @ Rated Voltage: 50A
  • Melting I2t: 3.2
  • DC Cold Resistance: 0.021 Ohms
  • Mounting: SMD (SMT)
  • Package/Case: 1206 (3216 Metric)
  • Operating Temperature Range: -55°C to 150°C
