Same model may have multiple batches, images only for reference.

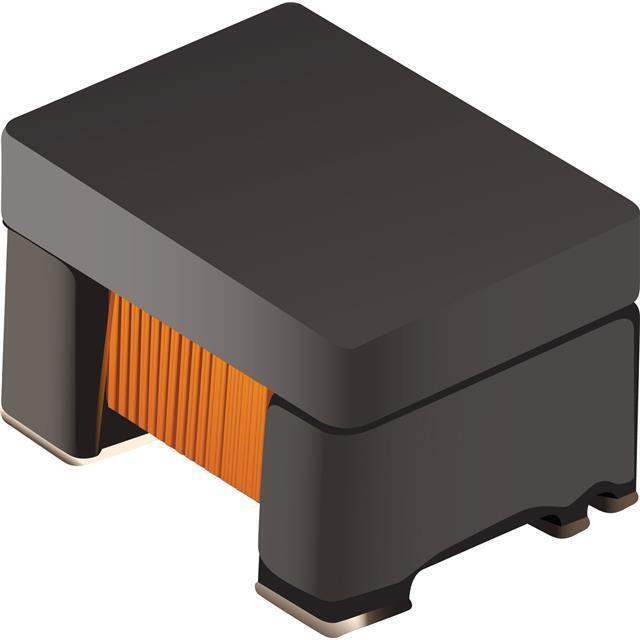

SM453229A-381N7Y Bourns Inc.
Same model may have multiple batches, images only for reference.

SM453229A-381N7Y

Part No SM453229A-381N7Y
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description LAN XFMR,10/100/1000 BASE-T,IEEE
Datasheet
SM453229A-381N7Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310521-SM453229A-381N7Y
Category Transformers >Pulse Transformers
Manufacturer Bourns Inc.
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.185" L x 0.127" W (4.70mm x 3.22mm)
Height - Seated (Max) 0.114" (2.90mm)
Operating Temperature -40°C ~ 85°C
Ultra Librarian 3D Model Ultra Librarian SM453229A-381N7Y CAD Model

Description

  • IEEE 802.3 Ethernet compatible
  • Compatible with 10/100/1000 BASE-T
  • Discrete transformers and common mode chokes for flexible PCB layout
  • Pairing common mode chip inductor Model SRF2012A-801Y for EMI reduction
  • Expanded temperature range: -40 to +105 °C
  • AEC-Q200 Compliant
  • RoHS compliant and halogen free
