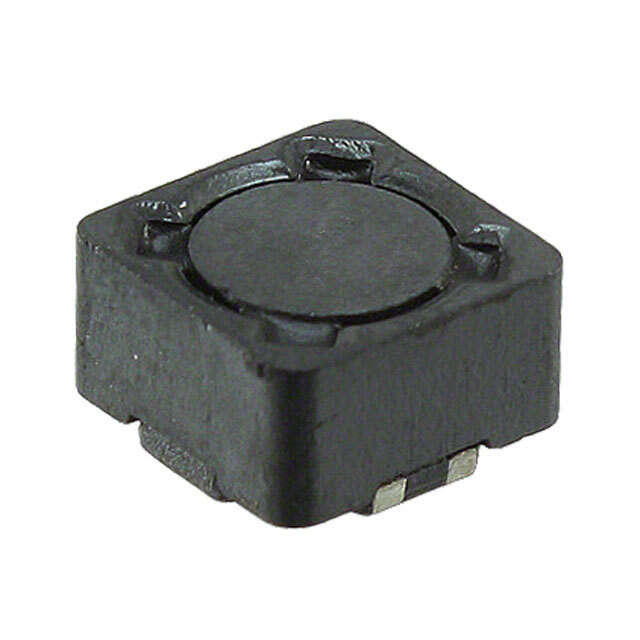

SRF0703-820M

Part No SRF0703-820M
Manufacturer Bourns Inc.
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 82UH SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Coils 2
Inductance - Connected In Parallel 82 µH
Inductance - Connected In Series 328 µH
Tolerance ±20%
Current Rating - Parallel 860 mA
Current Rating - Series 430 mA
Current Saturation - Parallel 890 mA
Current Saturation - Series 440 mA
DC Resistance (DCR) - Parallel 610mOhm Max
DC Resistance (DCR) - Series 2.28Ohm Max
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Case / Package Nonstandard
Size / Dimension 0.299" L x 0.299" W (7.60mm x 7.60mm)
Height 0.142\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1530734-SRF0703-820M
Ultra Librarian 3D Model Ultra Librarian SRF0703-820M CAD Model
