Same model may have multiple batches, images only for reference.

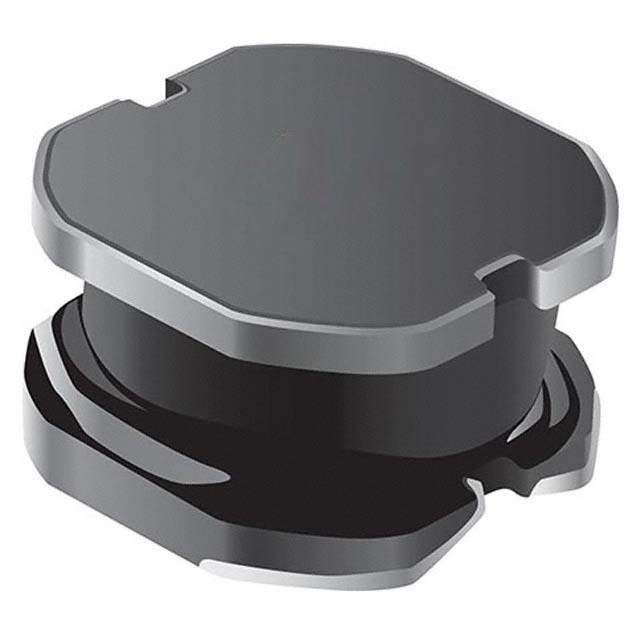

SRN1060-220M Real Image
Same model may have multiple batches, images only for reference.

SRN1060-220M

Part No SRN1060-220M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 3.4A 53 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating (Amps) 3.4A
Current - Saturation 3.4A
Shielding Semi-Shielded
DC Resistance (DCR) 53mOhm Max
Q at Freq 20 at 7.96MHz
Frequency - Self Resonant 8MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.394" L x 0.386" W (10.00mm x 9.80mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Family Part Number SRN1060
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759470-SRN1060-220M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SRN1060-220M CAD Model

Description

The Bourns Inc. 759470-SRN1060-220M is a wirewound semi-shielded inductor manufactured by Bourns Inc..

  • Inductance: 22μH
  • Tolerance: ±20%
  • Current Saturation: 3.4A
  • Frequency Self-Resonant: 8MHz
  • DC Resistance (DCR): 53mOhm max
  • Operating Temperature Range: -40°C to 125°C
  • Package: Nonstandard
  • Height: 0.236" (6.00mm)
  • Family Part Number: SRN1060
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (unlimited)
  • Parts Dimension: 0.394" L x 0.386" W (10.00mm x 9.80mm)
  • Q @ Freq: 20 @ 7.96MHz
  • Current Rating (amps): 3.4A
  • Inductance Frequency-Test: 100kHz
